DT04-12PA-LE01 TE Connectivity / DEUTSCH

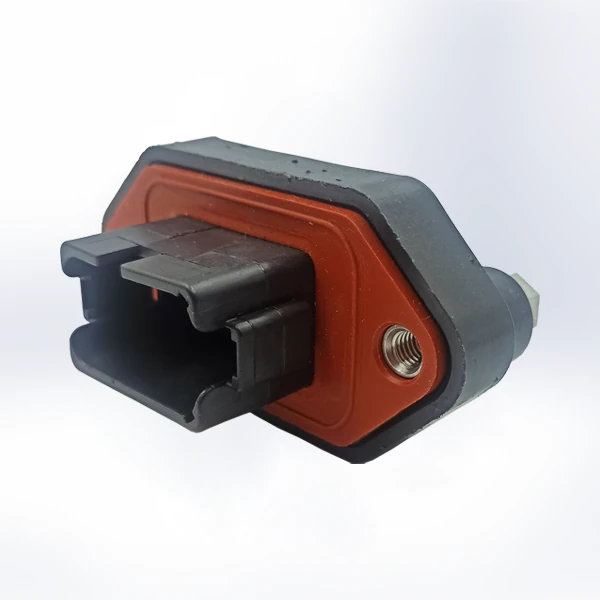

DT04-12PA-LE01 DEUTSCH 12-Position Receptacle with Mounting Flange
The TE Connectivity / DEUTSCH DT04-12PA-LE01 is a premium 12-position automotive receptacle designed for high-reliability applications in harsh environments. Part of the renowned DT Series, this model features an integrated mounting flange (LE01 modification) for secure attachment to panels or chassis. Engineered to withstand extreme vibrations and thermal shifts from -55°C to +125°C, it offers a robust current rating of 13A per contact. With its superior IP68 and IP6K9K ratings, this connector provides world-class protection against moisture, dust, and high-pressure washdowns, making it the industry standard for heavy equipment, agricultural machinery, and automotive electrical systems.
Technical Excellence
- 12-Position Layout for multi-circuit connectivity
- Integrated Mounting Flange for rigid panel installation
- Environmental Protection: Dual IP68 & IP6K9K ratings
- High Current Capacity: 13A continuous per contact
- Wide Temperature Range: Reliable from -55°C to +125°C
- Compact Receptacle Design with A-keying configuration
Operational Advantages
- Harsh Environment Ready: Resistant to oils, chemicals, and fuel
- Versatile Wire Support: Accommodates 14 AWG to 20 AWG
- Field-Proven Reliability: Trusted in heavy-duty industrial sectors
- Secure Secondary Locking: Compatible with wedgelocks (W12P)
- High-Pressure Wash Resistance: Built for steam cleaning environments
- Rugged Thermoplastic Housing: Impact and vibration resistant
Technical Specifications
| Manufacturer / Brand | TE Connectivity / DEUTSCH |
|---|---|
| Part Number | DT04-12PA-LE01 |
| Connector System | Automotive Connectors (DT Series) |
| Number of Positions | 12 Positions |
| Contact Type | Receptacle (Female/Housing) |
| Mounting Style | Flange Mount |
| Current Rating | 13 Amps |
| Wire Size Compatibility | 14 AWG - 20 AWG |
| IP Rating | IP68, IP6K9K (Dust/Waterproof) |
| Operating Temperature | -55 °C to +125 °C |
| Dimensions | 40.56 x 22.25 x 45.92 mm |
Technical Datasheet
Detailed dimensional drawings, contact arrangements, and full performance specifications are available in the official DEUTSCH DT series datasheet.
Primary Industry Applications
Agricultural MachineryConstruction EquipmentMarine Power Systems
Trucking & LogisticsOff-Road VehiclesMining Electronics
Industrial AutomationOutdoor Power GridsEngine Management
Hydraulic Control UnitsBus & Transit SystemsEmergency Vehicles
