Ro-enc chs80.1-1e-100b Magnetic Sensor Encoder (Hand wheel)
Product Code:SAN-SHENG-SHC80.1
Stock:8
Free shipping over $500
Fast & reliable service
Product Description
ADD TO BASKET
Ro-enc chs80.1-1e-100b Magnetic Sensor Encoder (Hand wheel)

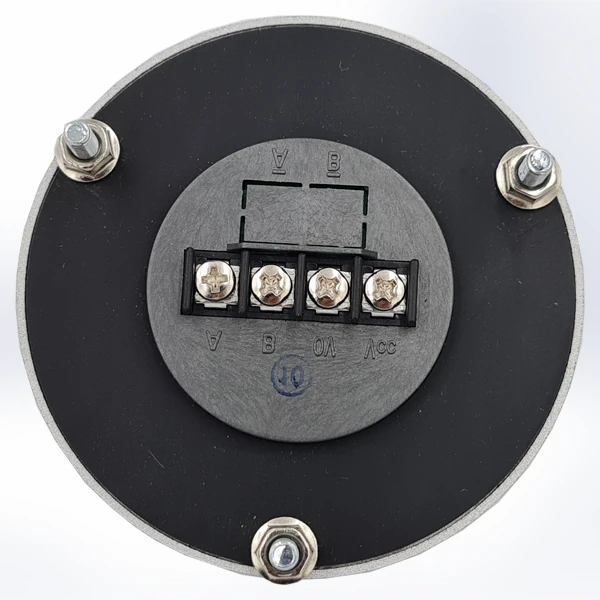

Ro-enc CHS80.1-1E-100B CNC Handwheel MPG
The **Ro-enc CHS80.1-1E-100B** is a high-performance Manual Pulse Generator (MPG) specifically engineered for CNC machinery and industrial automation interfaces. Featuring a robust **metal gear** interior, it provides a distinct and clear rotating feeling (detent) for precise manual positioning. Designed with a **Line Driver output**, this encoder boasts high resistance to electrical disturbance and is optimized for stable, long-distance signal transmission. Its thin, lightweight Φ72 profile allows for easy integration into compact pendant stations and control panels.
Product Highlights
- Robust Interior: High-durability metal gear mechanism for long operational life
- Tactile Precision: Engineered for a clear, crisp rotating feeling during manual pulses
- Signal Integrity: Line Driver output ensures stability in electrically noisy environments
- Extended Range: Optimized for high capacity resisting disturbance and long-distance cabling
- Compact Profile: Thin and light design with a Φ72 mounting footprint
- Standard Fastening: Secured via M3 screws for universal industrial compatibility
Primary Applications
- CNC Machine Tools: Manual axis jogging and tool calibration for lathes and mills
- Industrial Automation: Precise coordinate setting for multi-axis robotic systems
- Remote Pendant Stations: Integration into handheld CNC control units (MPGA)
- Positioning Stages: Manual override and fine-tuning for linear/rotary motion stages
- Factory Control Boxes: Compact HMI solution for industrial machinery control panels
- Assembly Lines: Speed and distance adjustment for automated processing equipment
Technical Specifications
| Brand | Ro-enc |
|---|---|
| Model / Description | CHS80.1-1E-100B CNC Handwheel |
| Mounting Diameter | Φ 72 mm |
| Fastening Type | M3 Screws |
| Physical Profile | Thin and Light Design |
| Internal Gear Material | Metal Gear |
| Tactile Feedback | Clear Rotating Detent Feeling |
| Output Type | Line Driver Output |
| Disturbance Resistance | High Capacity (Anti-Interference) |
| Transmission Capability | Suitable for Long Distance Signal Transmission |
| Application Category | CNC Handwheel / MPG (Manual Pulse Generator) |
Technical Documentation
Access the official Ro-enc CHS80 series datasheet for detailed wiring diagrams, resolution options, and mechanical mounting templates.
