%5
Asiantool$ 3,100.00$ 2,959.00 WHATSAPP
Asiantool A1430 30-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.

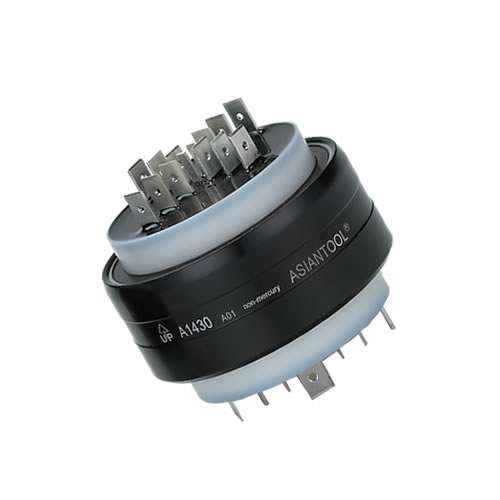

Asiantool A1430 30-Pole Rotary Electrical Connector
Product Code: AST-A1430
Made to order — we confirm the delivery date with your order
1
Free shipping over $500 to most countries Fast & reliable service
Product Description
Asiantool A1430 Rotary Electrical Connector
Asiantool A1430 30-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.
Asiantool Model A1430 Rotary Electrical Connector
The Asiantool A1430 is a heavy-duty, 14-pole rotating electrical connector (REC) designed for high-capacity power and signal transmission. Utilizing specialized insulation and conductive technologies, it ensures stable connectivity for complex rotating systems. With a robust aluminum alloy case (or optional stainless steel), it is perfectly suited for transmitting micro-voltage, EMF, thermocouples, audio, video, and high-frequency signals up to 100 MHz.
Technical Features
- 14-channel hybrid power and signal configuration
- Rated current capacity: 2x4A and 12x30A circuits
- High-frequency signal support up to 100 MHz
- Operating temperature range: -30 to 60 C
- Specialized sealing for long-term signal integrity
- Standard aluminum alloy or optional stainless steel housing
Signal Compatibility
- Micro-voltage and high-current power connections
- EMF, thermocouples, and strain gauges
- Audio and High-Definition video transmission
- High-frequency data communication
- Industrial sensors and control signals
- Precision measurement equipment links
| Number of Channels | 14 |
|---|---|
| Rated Current | 2x4A @ 12x30A |
| Rated Voltage | 250 VAC (Max) |
| Operating Temperature Range | -30 to 60 C |
| Maximum Speed | 40 rpm |
| Maximum Frequency | 100 MHz |
| Insulation Resistance | >25 Mohm |
| Rotation Torque | 3000 gm-cm |
Related Products
Asiantool

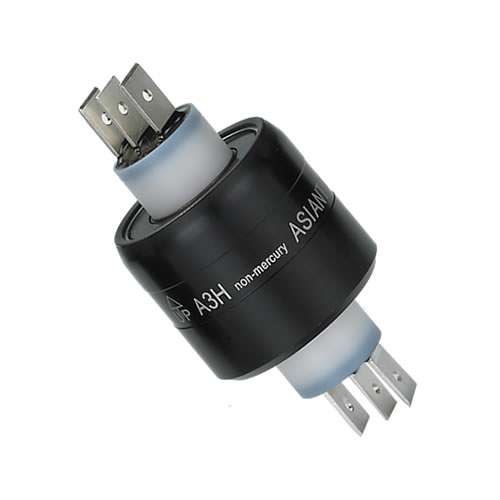

Asiantool A3H 3-Pole Rotary Electrical Connector
$ 132.00
Asiantool

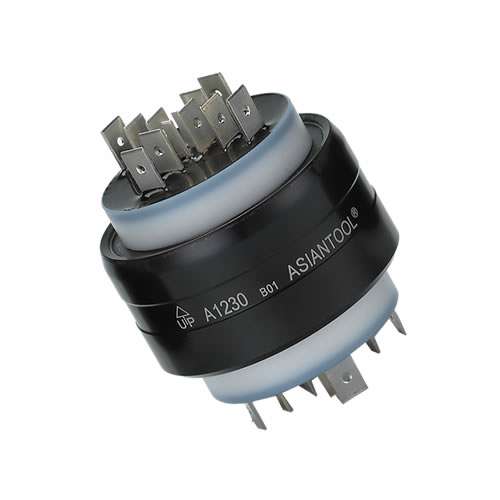

Asiantool A1230 30-Pole Rotary Electrical Connector
$ 2,100.00
%21
MLTECH

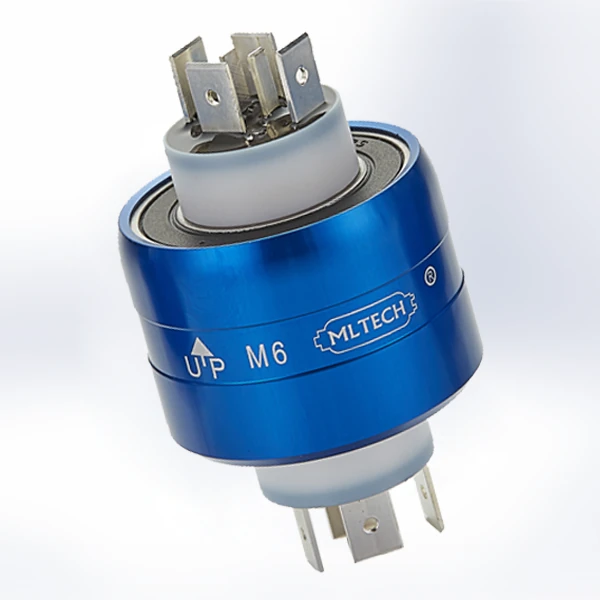

MLTECH M6 Slip Ring
Asiantool
A2H-PC Protective Cover
$ 12.00
Asiantool

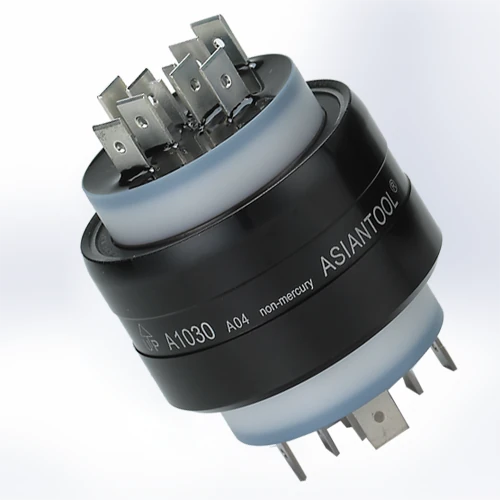

Asiantool A1030 (10-Pole, 2x 4A @ 8x 30A)
$ 2,100.00
%20
MLTECH

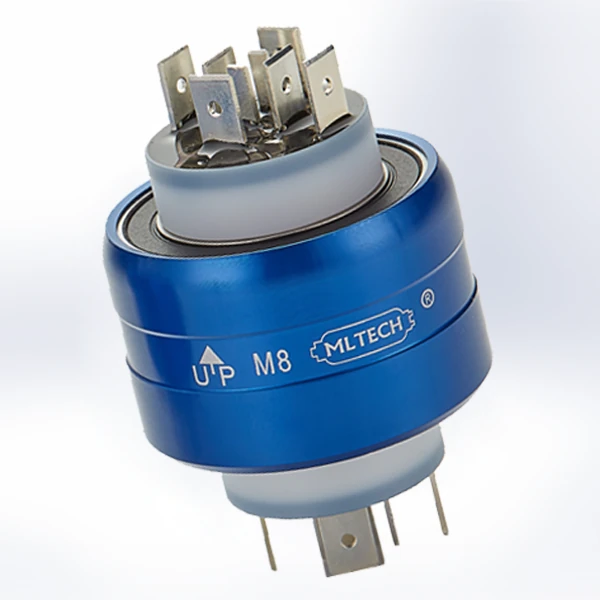

MLTECH M8 Slip Ring
%33
MLTECH

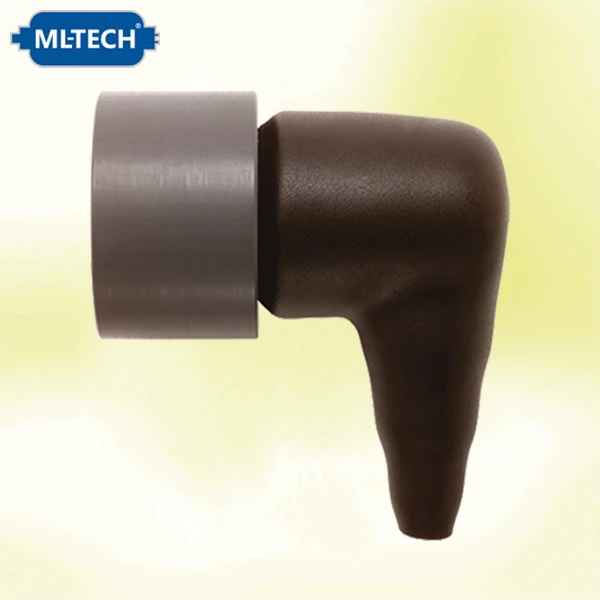

ML-TECH M8-PC Protective Cover
