Asiantool$ 150.00$ 127.00 WHATSAPP
Asiantool A3M 3-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.

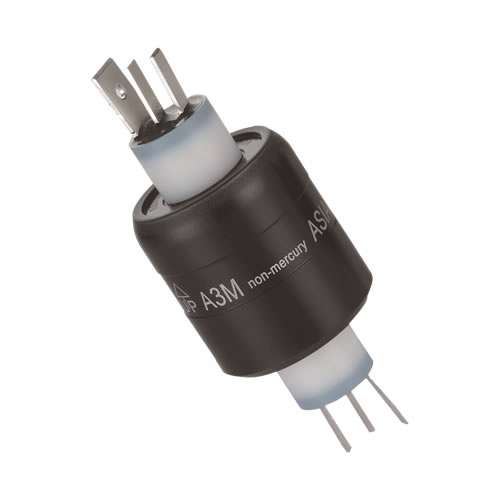

Asiantool A3M 3-Pole Rotary Electrical Connector
Product Code: AST-A3M
Made to order — we confirm the delivery date with your order
1
Free shipping over $500 to most countries Fast & reliable service
Product Description
Asiantool A3M Rotary Electrical Connector
Asiantool A3M 3-pole rotating electrical connector (REC or electrical slip ring) is using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or can be stainless steel upon request. It is used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermocouple, strain gauge, audio, video, high frequency, etc. and electric power connections.
Asiantool Model A3M Rotary Electrical Connector
The Asiantool A3M is a high-performance 3-pole rotating electrical connector (REC) utilizing advanced insulation, sealing, and conductive technologies for seamless signal and power transmission. Housed in a durable aluminum alloy (with stainless steel available upon request), it is designed to transmit a versatile range of signals—including micro-voltage, EMF, thermocouples, audio, video, and high-frequency data—alongside stable electric power connections.
Technical Features
- 3-channel high-density signal and power configuration
- Dual-rated current capacity: 30A / 4A circuits
- High-speed operation: up to 1800 rpm
- Wide frequency support up to 200 MHz
- Low rotation torque (200 gm-cm) for precision movement
- Superior insulation resistance (> 25 Mohm)
Signal Compatibility
- Micro-voltage and sensitive current signals
- Thermocouples and EMF measurements
- Strain gauges and industrial sensors
- High-definition audio and video transmission
- High-frequency digital data communication
- Industrial electric power connections
| Number of Channels | 3 |
|---|---|
| Rated Current | 30 / 4A |
| Rated Voltage | 250 VAC (Max) |
| Operating Temperature Range | -30 to 60 C |
| Maximum Speed | 1800 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | > 25 Mohm |
| Rotation Torque | 200 gm-cm |
Technical Datasheet
Download the official Asiantool A3M datasheet for wiring instructions, mechanical mounting details, and signal charts.
Related Products
Asiantool

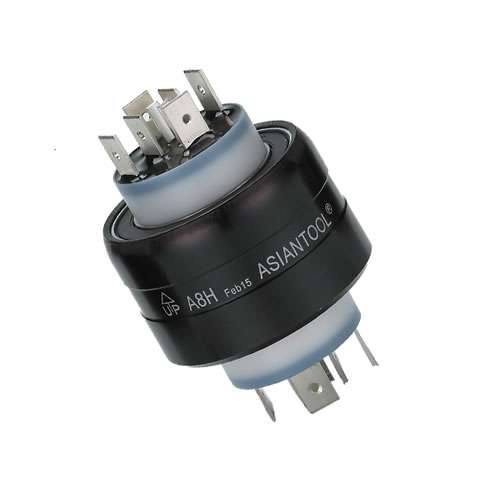

Asiantool A8H Rotary Electrical Connector
$ 780.00
Asiantool

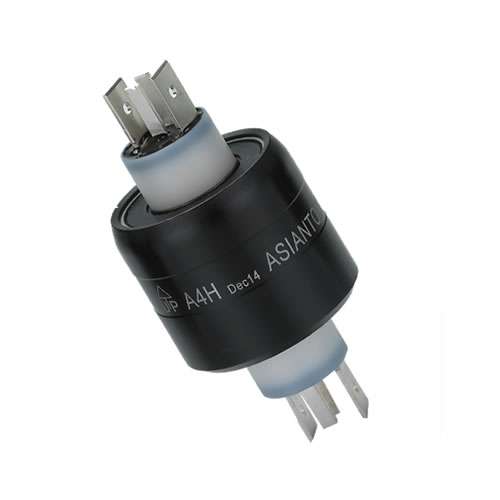

Asiantool A4H 4-Pole Rotary Electrical Connector
$ 149.00
%20
Asiantool

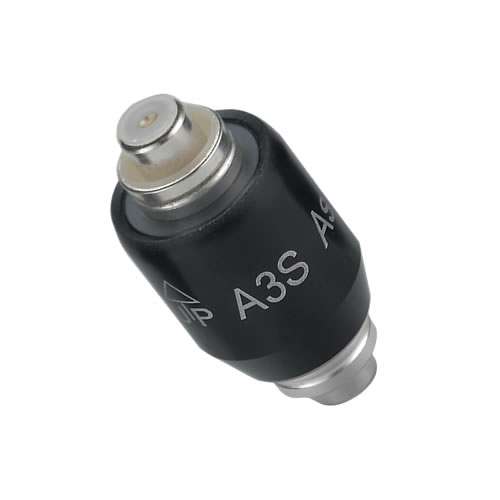

Asiantool A3S 3-Pole Rotary Electrical Connector
Asiantool

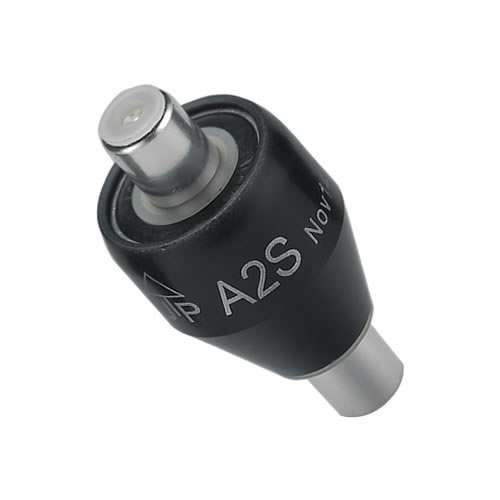

Asiantool A2S 2-Pole Rotary Electrical Connector
$ 66.00
Asiantool

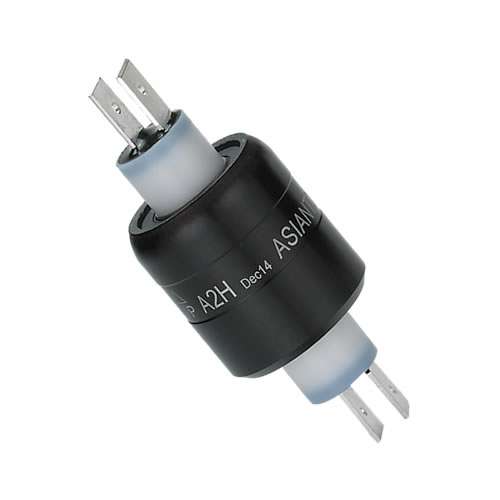

Asiantool A2H 2-Pole Rotary Electrical Connector
$ 109.00
%17
Mercotac Inc

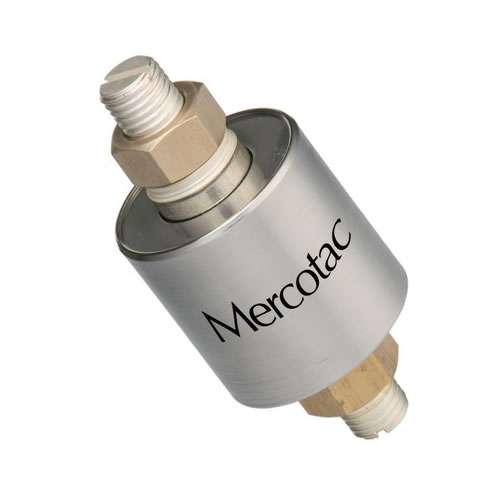

Mercotac Model 1500 Rotary Electrical Connector
%18
Mercotac Inc

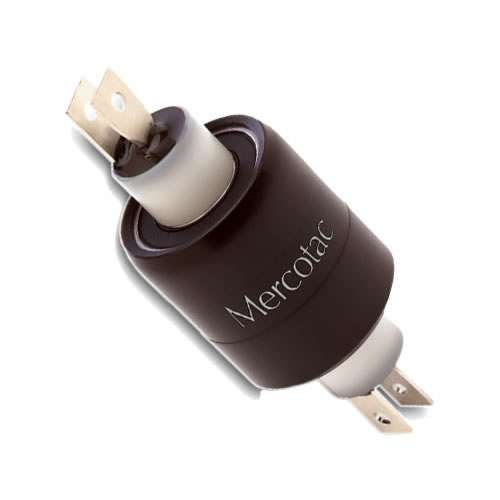

Mercotac Model 331 Rotary Electrical Connector
%5
Mercotac Inc

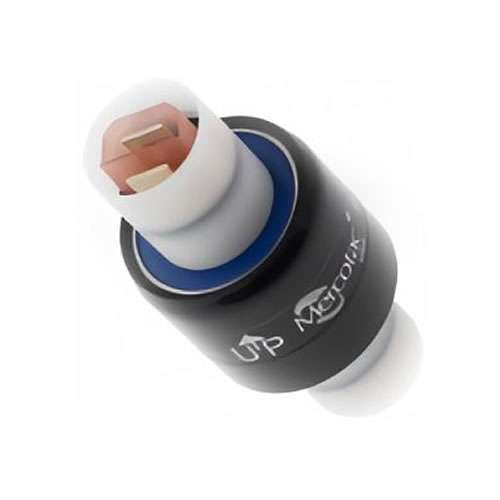

Mercotac Model 215-2K Rotary Electrical Connector
