EFK150 L/XWFK-150-5-BZ-N-100-4-CL Elcis Wire Encoder
Product Code:Elcis-EFK150
Stock:0
Free shipping over $500
Fast & reliable service
Product Description

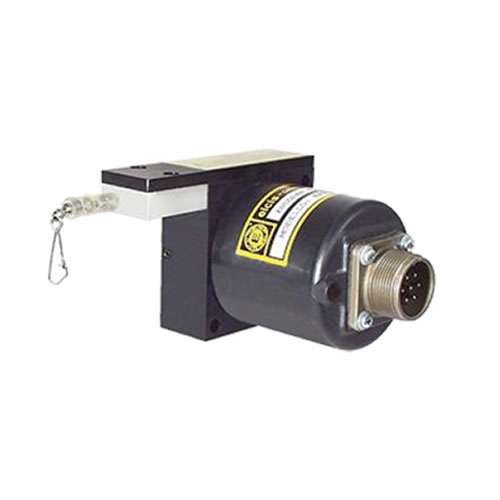

EFK150 L/XWFK-150-5-BZ-N-100-4-CL Elcis Wire Encoder
Elcis EFK150 L/XWFK-150-5-BZ-N-100-4-CL Wire Encoder
The Elcis EFK150 series is a precision-engineered draw-wire encoder designed for accurate linear position measurement in demanding industrial environments. This model converts linear displacement into rotary encoder pulses through a high-tensile stainless steel wire mechanism, offering exceptional repeatability and resolution. Featuring a robust housing and specialized internal electronics (BZ-N configuration), the EFK150 is ideal for applications requiring long-stroke measurement, such as hydraulic cylinder positioning, crane height monitoring, and automated warehouse systems. Its "4-CL" connection type ensures stable signal transmission over distance, while the 100-pulse configuration provides the granular data needed for advanced motion control.
Technical Excellence
- High-Precision Wire Mechanism: Converts linear motion to reliable rotary pulses
- Versatile Output (BZ-N): Optimized signal output for industrial controllers
- Robust Construction: Designed for vibration and impact resistance
- High Resolution: 100 pulses per unit for fine-tuned accuracy
- Stainless Steel Wire: High tensile strength with anti-corrosion properties
- Stable Signal Output: 4-CL configuration for low-interference transmission
Operational Advantages
- Long Stroke Capacity: Suitable for large-scale machinery positioning
- Easy Integration: Compact mounting footprint for diverse installations
- Real-Time Diagnostics: Constant position tracking for safety-critical tasks
- Harsh Environment Ready: Sealed against industrial dust and debris
- Maintenance-Free Design: High-cycle life spring and bearing assembly
- Versatile Compatibility: Interfaceable with PLC and CNC systems
Technical Specifications
| Manufacturer | Elcis Encoder |
|---|---|
| Model Code | EFK150 L/XWFK-150-5-BZ-N-100-4-CL |
| Device Type | Draw-Wire / Linear Wire Encoder |
| Output Signal | BZ-N Configuration |
| Resolution | 100 Pulses |
| Connection Type | 4-CL Signal Leads |
| Wire Material | High-Tensile Stainless Steel |
| Housing Material | Industrial Grade Aluminum / Reinforced Plastic |
| Measurement Logic | Linear Displacement to Pulse Conversion |
| Compliance | CE Industrial Standards |
Technical Datasheet
Complete mounting dimensions, wiring color codes, and advanced signal timing diagrams are available in the official Elcis EFK150 series datasheet.
Primary Industry Applications
Hydraulic CylindersCrane Height MonitoringWarehouse Automation
X-Y Table PositioningLift and Elevator SystemsAgricultural Machinery
Textile MachinesWoodworking AutomationMetal Press Control
Sluice Gate ControlScissor LiftsConveyor Tensioning
