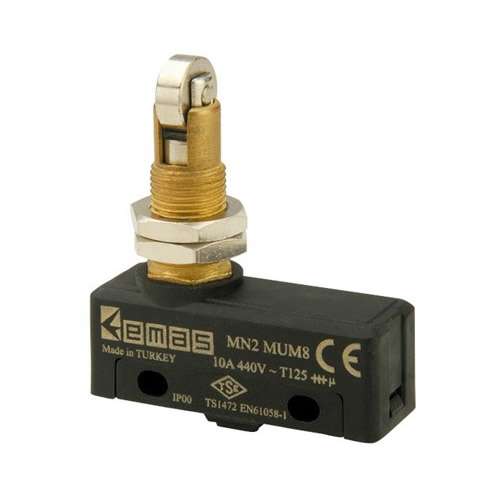

Emas MN2MUM8 Basic Switch
Product Code: EMS-MN2MUM8
Made to order — we confirm the delivery date with your order
Product Description
Emas MN2MUM8 Basic Switch
Metal Roller Plunger 1CO MN2 Series Plastic Mini Switch
Emas MN2MUM8 Basic Switch
- Maximum product reliability with V0 material
- Different actuator options
- Standard mounting holes
Emas MN2MUM8 Basic Mini Switch - Metal Roller Plunger
The Emas MN2MUM8 is a high-precision basic mini switch from the enhanced MN2 series, specifically engineered for industrial automation applications where reliable position sensing in compact spaces is required. This model is equipped with a durable metal roller plunger actuator, designed to handle lateral actuation from cams or sliding components with minimal friction and high repeatability. Built with premium V0 flame-retardant material, the MN2MUM8 ensures maximum product reliability and high-level operational safety in demanding environments. Featuring a 1CO (Changeover) contact configuration and standardized mounting holes, it provides seamless integration into control systems, appliances, and automated machinery where precision, durability, and a small footprint are essential.
Technical Excellence
- V0 Rated Housing: Manufactured with top-tier flame-retardant material for peak industrial safety
- Metal Roller Plunger: Durable actuator designed for smooth mechanical triggering and low wear
- 1CO Contact Configuration: Versatile Changeover contact for flexible electrical circuit design
- Enhanced MN2 Series: Robust internal construction for higher mechanical and electrical reliability
- Standardized Mounting: Features industry-standard holes for easy installation and maintenance
- High Sensitivity: Engineered for rapid switching response with precise actuation force
Operational Advantages
- Friction Reduction: Roller plunger mechanism reduces wear on target cams and sliding parts
- Maximum Reliability: Robust internal mechanism ensures a long service life in repetitive cycles
- Superior Insulation: High insulation voltage (Ui) of 660V for industrial-grade protection
- AgNi Contacts: Features silver-nickel alloy for superior electrical conductivity
- Environmental Resilience: Engineered to operate efficiently across diverse temperature ranges
- Certified Quality: Fully compliant with international IEC/EN 60947-5-1 standards
Technical Specifications
| Model / Code | Emas MN2MUM8 |
|---|---|
| Series | MN2 Plastic Mini Switch |
| Actuator Type | Metal Roller Plunger (Metal Makaralı Pim) |
| Rated Current (Ie) | 6 A (250V AC, AC15) |
| Thermal Current (Ith) | 10 A |
| Contact Configuration | 1CO (Changeover / Enversör) |
| Insulation Voltage (Ui) | 660 V |
| Impulse Voltage (Uimp) | 2.5 kV |
| Body Material | V0 Flame-Retardant Plastic |
| Contact Material | AgNi (Silver-Nickel Alloy) |
| Standard Compliance | IEC/EN 60947-5-1 |
Technical Datasheet
For detailed wiring diagrams, dimensions, and electrical trip curves, view the official EMAS datasheet.
