Emas MN3KIM1(IP65) Basic Switch
Product Code: EMS-MN3KIM1
Made to order — we confirm the delivery date with your order
Product Description

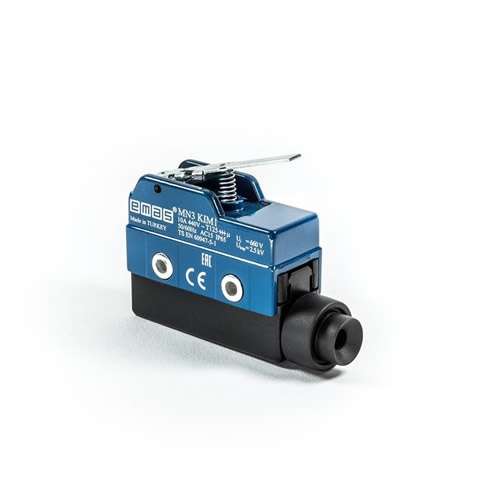

Emas MN3KIM1 Basic Switch
Metal Short Lever 1CO MN3 Series Metal Mini Switch
Emas MN3KIM1(IP65) Basic Switch
- Maximum product reliability with V0 material
- Different actuator options
- Standard mounting holes
| Downloads | |
| Datasheet | [reblex id='10889'] Download |
Emas MN3KIM1 Basic Metal Mini Switch - Metal Short Lever (IP65)
The Emas MN3KIM1 is a heavy-duty basic metal mini switch from the robust MN3 series, specifically engineered for demanding industrial environments requiring superior protection and mechanical durability. This model is equipped with a high-strength metal short lever actuator, ensuring precise and repeatable mechanical triggering in space-constrained installations. Featuring an IP65 protection rating, the MN3KIM1 is highly resistant to dust and water ingress, making it ideal for harsh operational conditions. Built with premium materials and V0-rated internal components, it provides maximum product reliability, a 1CO (Changeover) contact configuration, and standardized mounting holes for seamless integration into advanced control systems and industrial machinery.
Technical Excellence
- IP65 Protection: Highly sealed housing designed for resistance against dust and water jets
- Metal Body Construction: Robust metal housing for maximum mechanical impact resistance
- Metal Short Lever: Durable actuator optimized for precise and consistent triggering
- 1CO Contact Configuration: Versatile Changeover contact for flexible electrical circuit design
- V0 Rated Internals: Maximum safety with flame-retardant internal material reliability
- Standardized Mounting: Features industry-standard holes for easy installation and maintenance
Operational Advantages
- Heavy-Duty Reliability: Specifically designed for long-term use in harsh industrial environments
- High Precision: Sensitive internal mechanism ensures rapid response and high repeatability
- Compact Durability: Combines a small footprint with the strength of a metal-housed switch
- AgNi Contacts: Features silver-nickel alloy for superior electrical conductivity and life
- Wide Application Range: Ideal for machine tools, conveyor systems, and safety interlocks
- Global Standards: Engineered to meet international IEC/EN 60947-5-1 safety requirements
Technical Specifications
| Model / Code | Emas MN3KIM1 (IP65) |
|---|---|
| Series | MN3 Metal Mini Switch Series |
| Actuator Type | Metal Short Lever (Metal Kısa Levye) |
| Rated Current (Ie) | 6 A (250V AC, AC15) |
| Thermal Current (Ith) | 10 A |
| Contact Configuration | 1CO (Changeover / Enversör) |
| Protection Degree | IP65 (Dust-tight and Water Jet Resistant) |
| Insulation Voltage (Ui) | 660 V |
| Impulse Voltage (Uimp) | 2.5 kV |
| Contact Material | AgNi (Silver-Nickel Alloy) |
| Standard Compliance | IEC/EN 60947-5-1 |
Technical Datasheet
For detailed wiring diagrams, dimensions, and electrical trip curves, view the official EMAS datasheet.
