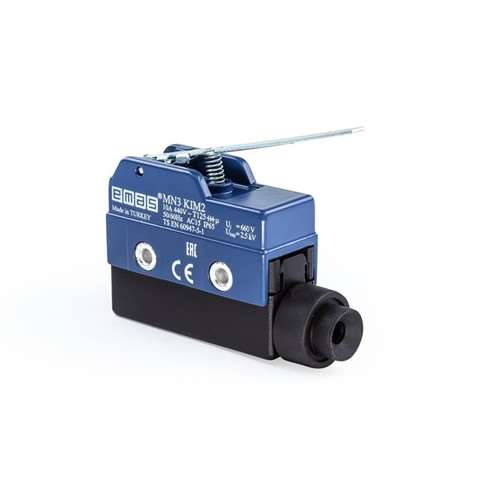

Emas MN3KIM2(IP65) Basic Switch
Product Code: EMS-MN3KIM2
Made to order — we confirm the delivery date with your order
Product Description
Emas MN3KIM2 Basic Switch
Metal Long Lever 1CO MN3 Series Metal Mini Switch
Emas MN3KIM2(IP65) Basic Switch
- Maximum product reliability with V0 material
- Different actuator options
- Standard mounting holes
Emas MN3KIM2 Basic Metal Mini Switch - Metal Long Lever (IP65)
The Emas MN3KIM2 is a heavy-duty basic metal mini switch from the robust MN3 series, specifically engineered for demanding industrial environments requiring superior mechanical protection and extended reach sensing. This model is equipped with a high-strength metal long lever actuator, ensuring precise and repeatable triggering even when the target is positioned further from the switch body. Featuring an IP65 protection rating and a rugged metal housing, the MN3KIM2 is highly resistant to dust, water ingress, and mechanical impacts. Built with V0-rated internal components and silver-nickel alloy contacts, it provides maximum product reliability and high-level operational safety for advanced control systems and heavy machinery.
Technical Excellence
- IP65 Protection: Sealed housing designed for total resistance against dust and water jets
- Metal Body Construction: Rugged metal housing for maximum durability in harsh conditions
- Metal Long Lever: Durable actuator optimized for extended reach and precise mechanical triggering
- 1CO Contact Configuration: Versatile Changeover contact for flexible electrical wiring
- V0 Rated Internals: Maximum safety with flame-retardant internal material reliability
- Standardized Mounting: Features industry-standard holes for easy installation and maintenance
Operational Advantages
- Extended Reach: Long lever design allows for sensing targets across a wider mechanical range
- Industrial Grade Build: Specifically engineered to withstand repeated stress and heavy-duty cycles
- AgNi Contacts: Features silver-nickel alloy for superior electrical conductivity and long life
- High Precision: Sensitive internal mechanism ensures rapid response and high repeatability
- Superior Insulation: Rated insulation voltage (Ui) of 660V for industrial safety
- Global Standards: Fully compliant with international IEC/EN 60947-5-1 quality requirements
Technical Specifications
| Model / Code | Emas MN3KIM2 (IP65) |
|---|---|
| Series | MN3 Metal Mini Switch Series |
| Actuator Type | Metal Long Lever (Metal Uzun Levye) |
| Rated Current (Ie) | 6 A (250V AC, AC15) |
| Thermal Current (Ith) | 10 A |
| Contact Configuration | 1CO (Changeover / Enversör) |
| Protection Degree | IP65 (Dust-tight and Water Jet Resistant) |
| Housing Material | Robust Metal Housing |
| Insulation Voltage (Ui) | 660 V |
| Contact Material | AgNi (Silver-Nickel Alloy) |
| Standard Compliance | IEC/EN 60947-5-1 |
Technical Datasheet
For detailed wiring diagrams, dimensions, and electrical trip curves, view the official EMAS datasheet.
