EMAS
Emas MN3MIM1(IP65) Basic Switch
Product Code:EMS-MN3MIM1
Stock:0
Free shipping over $500
Fast & reliable service
Product Description
Emas MN3MIM1(IP65) Basic Switch

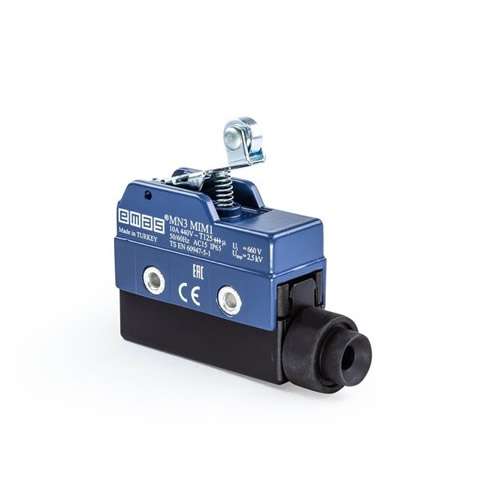

Emas MN3MIM1 Basic Metal Mini Switch - Metal Short Lever Roller (IP65)
The Emas MN3MIM1 is a heavy-duty basic metal mini switch from the robust MN3 series, specifically engineered for industrial automation and mechanical sensing where high ingress protection and mechanical strength are required in compact spaces. This model is equipped with a durable metal short lever roller actuator, ensuring smooth mechanical triggering with significantly reduced friction against target surfaces. Featuring an IP65 protection rating and a rugged metal housing, the MN3MIM1 is highly resistant to dust, moisture, and mechanical impacts, making it ideal for harsh industrial environments. Built with silver-nickel alloy contacts and V0-rated internal safety components, it provides maximum product reliability and consistent performance for position detection, limit sensing, and safety interlocks.
Technical Excellence
- IP65 Protection: Fully sealed housing designed for total resistance against dust and water jets
- Metal Body Construction: Rugged metal housing for maximum durability in demanding conditions
- Short Lever Roller: Metal actuator designed for smooth triggering and reduced mechanical wear
- 1CO Contact Configuration: Versatile Changeover contact for flexible electrical wiring
- V0 Rated Internals: Maximum safety with flame-retardant internal material reliability
- Standardized Mounting: Features industry-standard holes for easy installation and maintenance
Operational Advantages
- Friction Reduction: Roller tip minimizes friction and wear on target mechanical components
- Industrial Grade Build: Specifically engineered to withstand repeated stress and heavy-duty cycles
- AgNi Contacts: Features silver-nickel alloy for superior electrical conductivity and long life
- High Precision: Sensitive internal mechanism ensures rapid response and high repeatability
- Superior Insulation: Rated insulation voltage (Ui) of 660V for industrial safety
- Global Standards: Fully compliant with international IEC/EN 60947-5-1 quality requirements
Technical Specifications
| Model / Code | Emas MN3MIM1 (IP65) |
|---|---|
| Series | MN3 Metal Mini Switch Series |
| Actuator Type | Metal Short Lever Roller (Makaralı Kısa Metal Levye) |
| Rated Current (Ie) | 6 A (250V AC, AC15) |
| Thermal Current (Ith) | 10 A |
| Contact Configuration | 1CO (Changeover / Enversör) |
| Protection Degree | IP65 (Dust-tight and Water Jet Resistant) |
| Housing Material | Heavy-Duty Metal Housing |
| Insulation Voltage (Ui) | 660 V |
| Contact Material | AgNi (Silver-Nickel Alloy) |
| Standard Compliance | IEC/EN 60947-5-1 |
Technical Datasheet
For detailed wiring diagrams, dimensions, and electrical trip curves, view the official EMAS datasheet.
