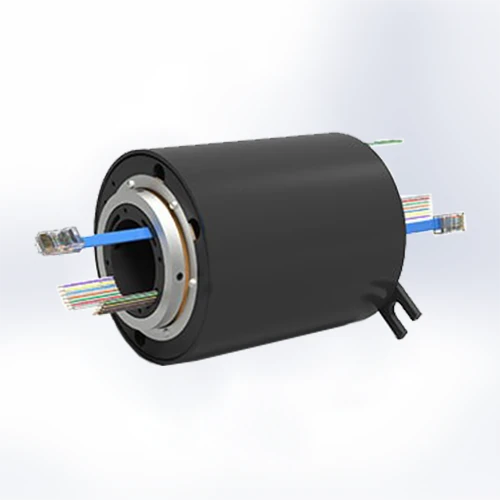

DSTI ESET128 20-Channel Hybrid Through-Bore Slip Ring (1 Gbps + 10A Power)
The DSTI ESET128 is a heavy-duty hybrid through-bore slip ring engineered for advanced industrial applications requiring high-power delivery and ultra-high-speed data transmission through a hollow shaft interface. This 20-channel model features a powerful internal configuration, including twelve 10A circuits and a dedicated 1 Gbps Gigabit Ethernet port (1000Base-T). Designed for 600V high-voltage environments, the ESET128 utilizes premium silver contact technology to ensure stable conductivity and reliable performance at speeds up to 250 RPM. Its 125 mm [4.940"] through-bore design allows for the integration of mechanical shafts, pneumatic lines, or hydraulic tubing, making it the premier choice for complex robotics, offshore equipment, and high-capacity rotary tables.
Technical Excellence
- Gigabit Ethernet Support: Optimized for stable 1 Gbps (1000Base-T) data
- High Voltage Capacity: Rated for 600V industrial power requirements
- Silver Contact Technology: Premium silver contacts for high-current reliability
- 12x 10A Power Circuits: Massive power delivery for motors and actuators
- Through-Bore Design: Allows integration with existing mechanical shafts
- Hybrid Signal Mix: Seamlessly combines heavy power and precision data
Operational Advantages
- High-Speed Support: Smooth 360° operation at speeds up to 250 RPM
- Industrial Build: Robust 125 mm housing designed for long service life
- Extreme Temp Resilience: Performs reliably from -40°C up to +80°C
- Versatile Wiring: Hybrid 16 & 24 AWG tin-plated/copper lead wires
- Integrated Mounting: Optimized for through-shaft rotary installations
- Maintenance-Free: Sealed assembly engineered for heavy-duty industrial use
Technical Specifications
| Model Number | DSTI ESET128 |
|---|---|
| Total Channels | 20 Circuits |
| Rated Current | (12x) 10A, (1x) Gigabit Ethernet |
| Max. Data Speed | 1 Gbps [1000Base-T] |
| Voltage Rating | 600 V |
| Max. Rotation Speed | 250 RPM |
| Contact Material | Silver |
| Housing Length | 125 mm [4.940 in.] |
| Lead Wire Length | 914 mm [36 in.] |
| Wire Gauge / Material | 16 & 24 AWG / Tin-Plated & Pure Copper |
| Electrical Noise | 100 Milliohms (max.) |
| Operating Temperature | -40°C to +80°C |
