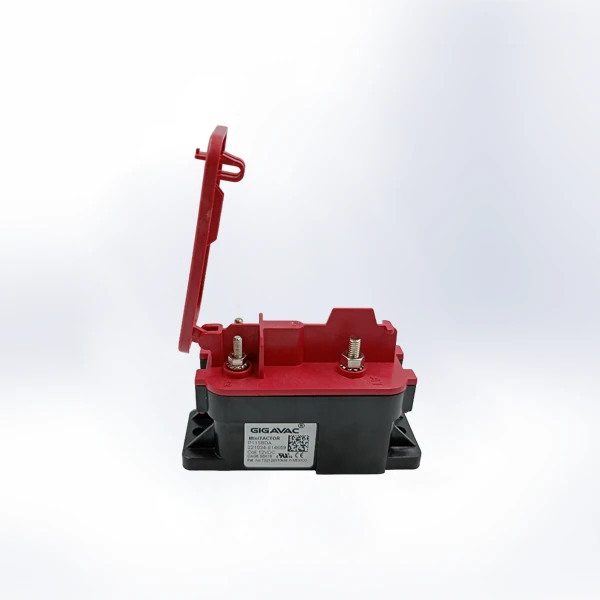

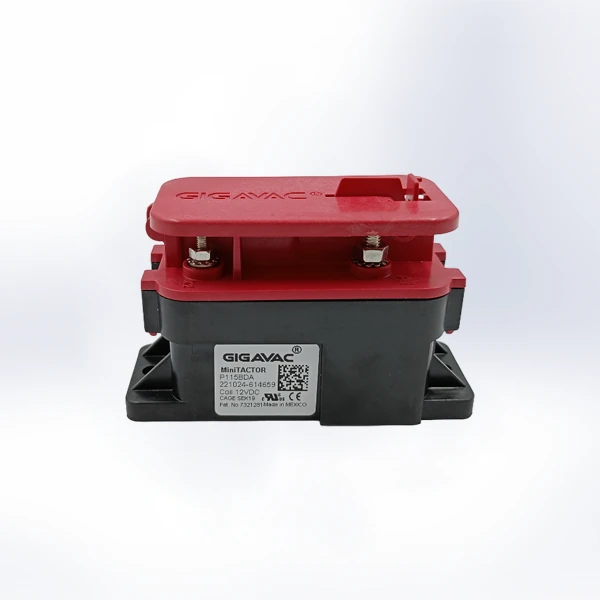

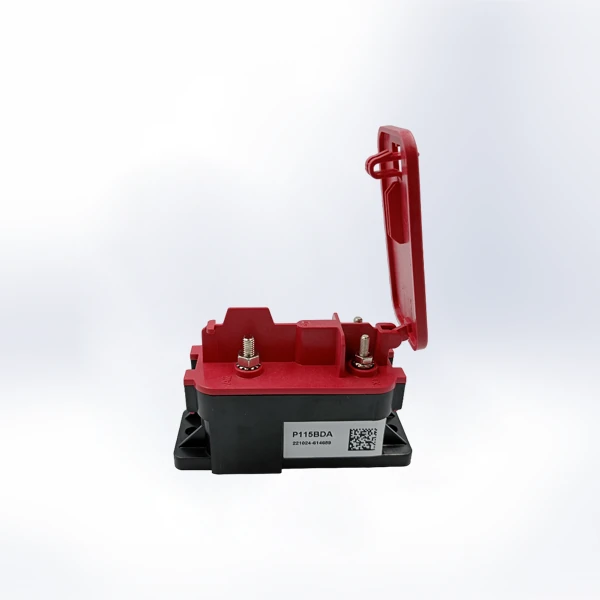

GIGAVAC P115BDA MiniTACTOR
Product Code: P115BDA
In stock — 348 available
Product Description
GIGAVAC P115BDA MiniTACTOR
The GIGAVAC P115BDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor. It is designed and manufactured in the USA.
The P-Series contactor can be quickly installed in any position on a panel or PCB. Both the coil and contacts are enclosed in a hermetically sealed chamber, ensuring reliable switching in various environmental conditions. Additionally, P-Series contactors are significantly lighter than other models, weighing less than 140 grams.
GIGAVAC P115BDA MiniTACTOR™ - 50A 12V-1500VDC
The GIGAVAC P115BDA is a high-performance, compact power contactor from the renowned MiniTACTOR™ series, specifically engineered for high-voltage DC applications where space and weight are critical constraints. Designed and manufactured in the USA, this ultra-lightweight unit (only 135g) is capable of switching loads up to an impressive 1500VDC. Its hermetically sealed chamber protects both the 12Vdc coil and the contacts, ensuring reliable load-break performance and safety in hazardous or harsh environmental conditions. Featuring an exceptional mechanical life of one million cycles and flexible installation options, the P115BDA is a premier solution for modern high-voltage power management infrastructure.
Product Highlights
- Extreme Voltage Capacity: Reliable switching up to 1500VDC
- Ultra-Lightweight: Professional design weighing only 135 grams
- Hermetically Sealed: Safe operation in hazardous, wet, or dusty environments
- Superior Longevity: Rated for a mechanical life of 1,000,000 cycles
- Total Protection: Fully rated for IP67 and IP69K standards
- Versatile Mounting: Can be installed in any position on panels or PCBs
Fields of Use
- Electric Vehicles (EV) and High-Voltage Charging Stations
- Solar Power Systems and Photovoltaic Inverters
- Advanced Battery Management Systems (BMS)
- High-Voltage DC Energy Storage Systems (ESS)
- Industrial Automation and DC Power Controls
- Specialized Defense and Aerospace Power Distribution
Technical Specifications
| Contact Arrangement | SPST-NO (Normally Open) |
|---|---|
| Contact Voltage, Operating Max. | 1500Vdc |
| Coil Voltage, Nominal | 12Vdc |
| Rated Current (@ 25°C) | 50A |
| Rated Current (@ 85°C) | 25A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -40 to +85 °C |
| Auxiliary Contact | None |
| IP Rating | IP67 and IP69K |
| Weight | 135 Grams |
Technical Datasheet
Download the official GIGAVAC P115BDA MiniTACTOR™ datasheet for comprehensive technical documentation, including mounting footprints, terminal torque settings, and performance curves.
