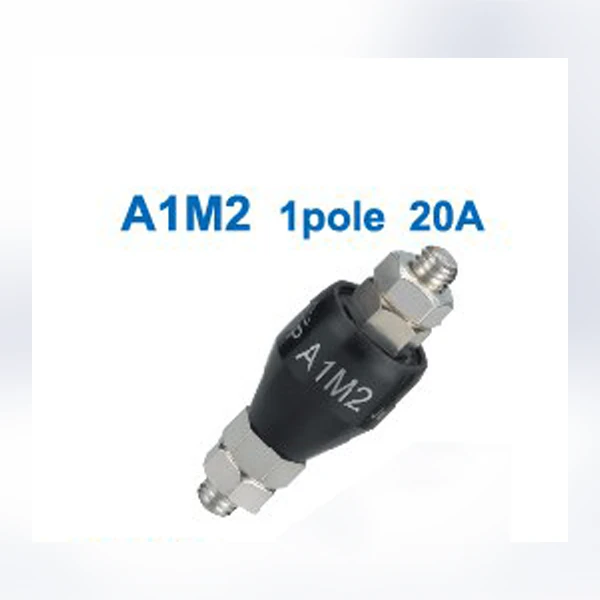

1 Channel - 20A - High Frequency Slip Ring
This heavy-duty single-channel slip ring is designed for industrial applications that require a combination of high current capacity and high-frequency signal integrity. Capable of handling 20A and frequencies up to 200 MHz, it provides a robust solution for power transmission and high-speed data communication in rotating systems.
| Number of Channels | 1 |
|---|---|
| Rated Current | 20A |
| Rated Voltage | max 250Vac |
| Operating Temperature Range | -30° to 60° C |
| Maximum Speed | 2000 rpm |
| Maximum Frequency | 200 MHz |
| Rotation Torque | 50 gm-cm |
