ASM Sensors
ASM WS42-1000-R1K-L35-1 Sensor
Product Code:WS42-1000-R1K-L35-1-A111370
Stock:10
Free shipping over $500
Fast & reliable service
ADD TO BASKET
ASM WS42-1000-R1K-L35-1 Sensor
ASM WS42-1000-R1K-L35-1 Sensor

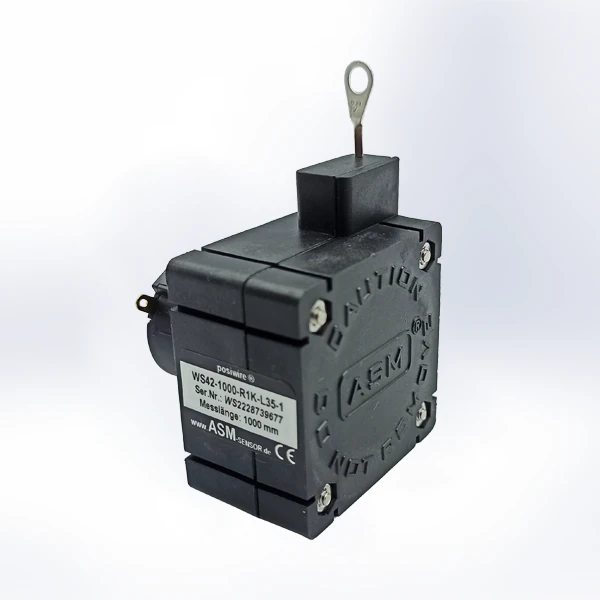

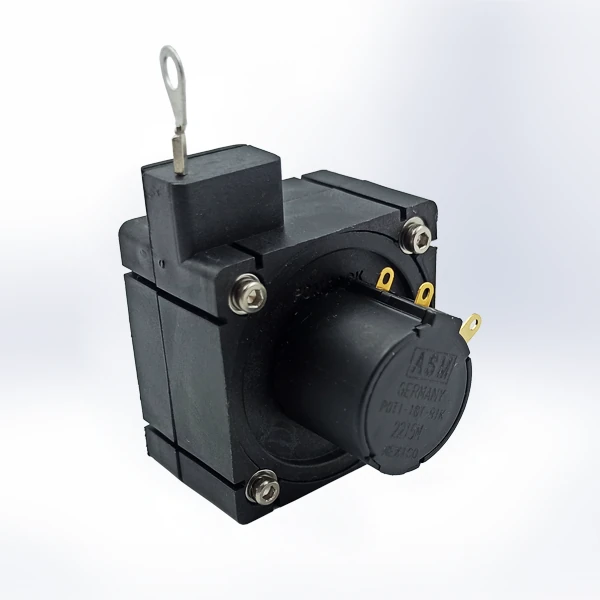

The ASM POSIWIRE® WS42 is an ultra-compact cable extension position sensor designed for incremental linear position capturing. Utilizing a high-grade stainless steel measuring cable, it provides reliable feedback for distances up to 1000 mm. Its lightweight and space-saving design makes it ideal for precision integration in diverse industrial setups.
Key Features
- Measurement range up to 1000 mm
- Precision 1 kΩ potentiometer output
- Stainless steel measuring cable for high durability
- Compact and lightweight construction (Approx. 130g)
- ±0.35% f.s. linearity for accurate feedback
- Solder eye connection for secure wiring
Application Areas
- Compact industrial automation systems
- Linear position sensing in medical devices
- Telescopic mechanism monitoring
- Robotic arm displacement feedback
- Laboratory measurement and testing units
| Measurement Range | Up to 1000 mm |
|---|---|
| Output | Potentiometer 1 kΩ |
| Linearity | ±0.35% f.s. |
| Protection Class | IP50 |
| Connection | Potentiometer (Soldering eye) |
| Weight | Approx. 130 g |
Technical Datasheet
Complete mounting instructions and technical specifications for the WS42 series are available in the official datasheet.
