c-BMS Wire harness kit
Product Code: c-BMS Wire harness kit
In stock — 87 available
Product Description
c-BMS Wire harness kit
c-BMS Wire Harness Kit Components
The c-BMS Wire Harness Kit comprises specialized cabling solutions engineered by Lithium Balance for the c-BMS24 hardware ecosystem. These components provide the critical physical interface required for precise battery management, including high-accuracy cell voltage monitoring, multi-node I/O communication, and thermal/current management. Each harness is designed with industrial-grade connectors and insulation to maintain signal integrity in high-EMI environments. These drawings provide the necessary pinouts, wire gauges, and connector specifications required for professional battery pack assembly and system integration.
Harness Specifications
- Cell Monitoring (100932): 32-way high-density connector for multi-cell pack voltage tracking
- I/O Communication (100930.1): 16-way gray IO wire for system logic and diagnostics
- Thermal Management (100931): 1000mm Temperature & Shunt wire for precise monitoring
- Signal Integrity: Optimized shielding to prevent crosstalk in high-current packs
- Durability: High-temperature resistant insulation and robust terminal crimping
- Standardization: Fully compatible with c-BMS and c-BMS24 controller hardware
Primary Applications
- Heavy-Duty EV: Main battery management for electric trucks and buses
- Grid Storage: Reliable wiring for stationary energy storage systems (ESS)
- Marine Battery Packs: Robust connectivity for electric propulsion systems
- Material Handling: Battery management for electric forklifts and AGVs
- BMS Prototyping: Standardized interface for custom battery pack development
- Quality Control: Precise sensing for battery end-of-line (EOL) testing
Technical Component Data
| Part Number & Drawing Reference | |

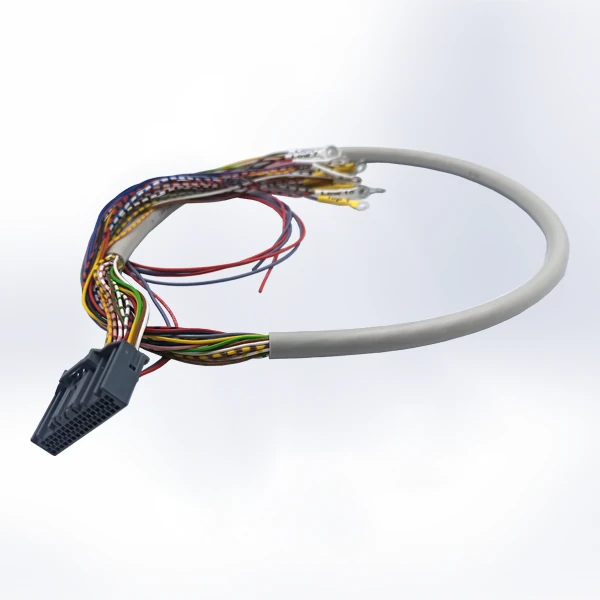

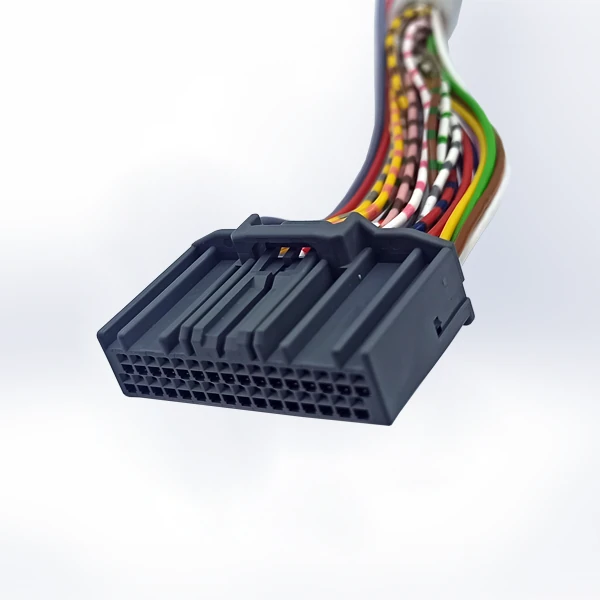

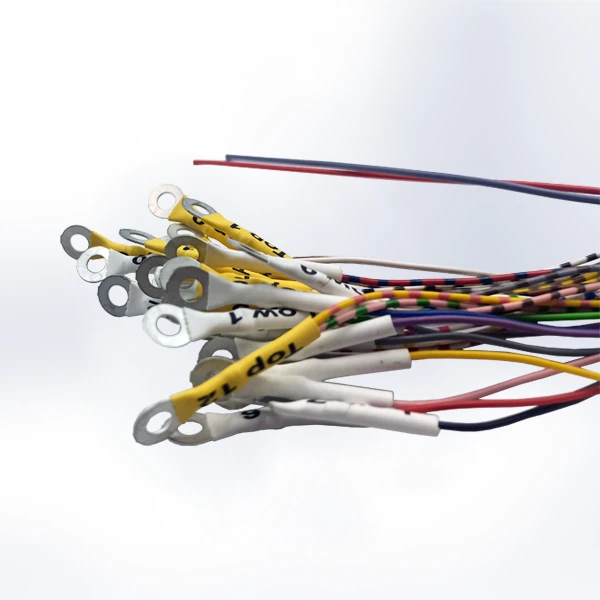

| 1. Cell Voltage Monitoring Wire | Part No. 100932 (32-way Connector) |
|---|---|

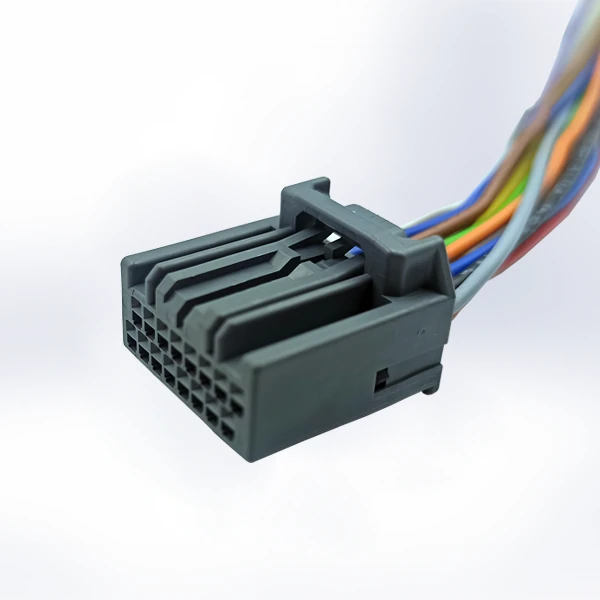

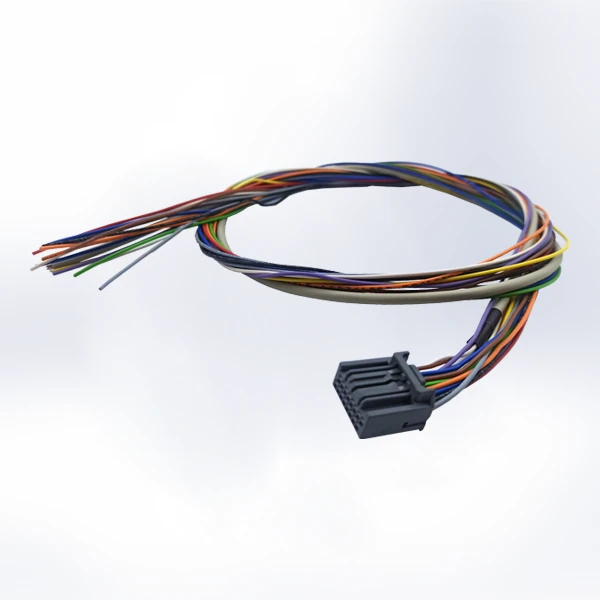

| 2. I/O Wire | Part No. 100930.1 (16-way Connector, Gray) |

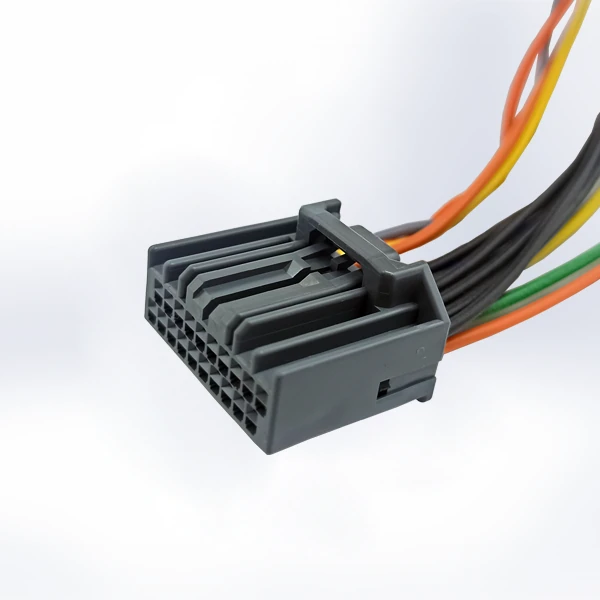

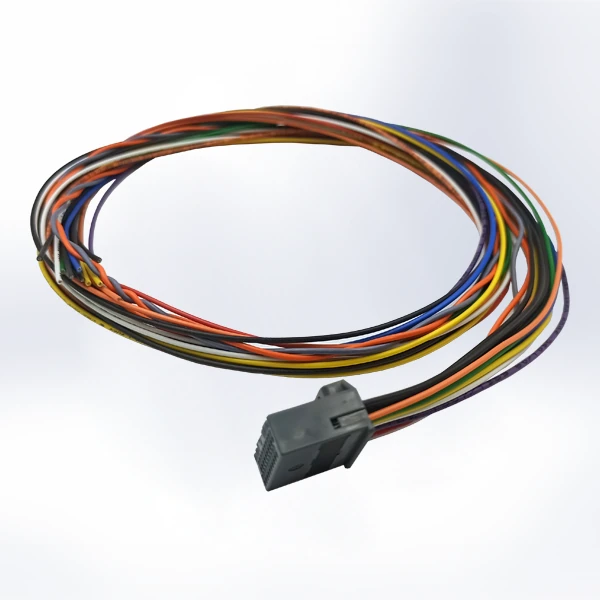

| 3. Temperature & Shunt Wire | Part No. 100931 / 000850 (1000mm Length) |
| System Compatibility | |
| Manufacturer | Lithium Balance (Sensata Technologies) |
| Hardware Series | c-BMS / c-BMS24 |
| Application | Lithium-Ion Battery Management Systems |
| Certification Requirement | Designed for professional industrial/automotive use |
Technical Drawing Downloads
Access the official Lithium Balance technical drawings for the c-BMS24 harness kit components.
