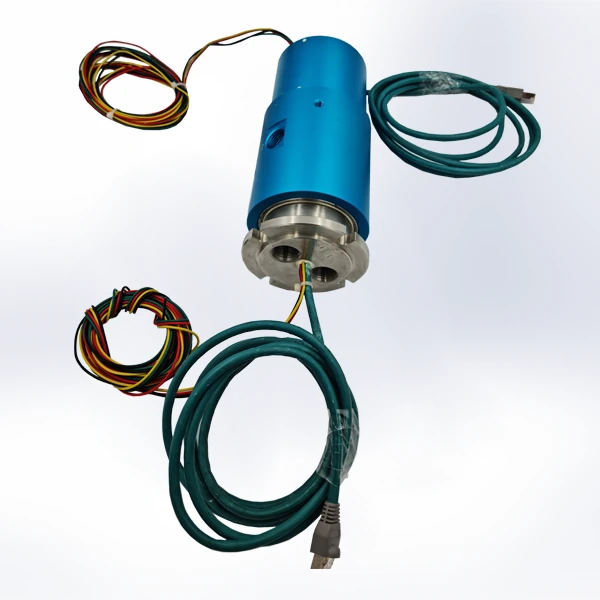

Electro Pneumatic 4x10A+1 Ethernet+1/2″ Air/Flow Through With 2 Channel
Electro Pneumatic Hybrid Slip Ring - 4x10A Power + 1 Gbps Ethernet
This high-performance electro-pneumatic hybrid slip ring is engineered to bridge the gap between heavy power transmission and ultra-high-speed data communication in continuous 360° rotating systems. Featuring a robust 95 mm outer diameter, the unit integrates four independent 10A power channels alongside a dedicated Gigabit Ethernet port capable of 1 Gbps data speeds. Utilizing premium precious metal contacts, it ensures exceptionally low electrical interference (≤ 0.01 Ω) and superior signal integrity even at high rotational speeds up to 600 RPM. Designed with a generous 1000 mm cable length for both stator and rotor, this slip ring provides a reliable, maintenance-free rotary interface for complex robotic platforms, precision high-definition cameras, and demanding industrial automation environments.
Technical Excellence
- Gigabit Ethernet Support: Optimized for stable 1 Gbps high-speed data transfer
- High Current Capacity: 4 independent channels rated at 10A each
- Precious Metal Contacts: Ensures long-term conductivity and low wear
- High Voltage Range: Fully rated for up to 240VAC/DC industrial power
- Ultra-Low Noise: Electrical interference ≤ 0.01 Ω for signal clarity
- Extended Reach: 1000 mm connection cables on both Stator and Rotor
Operational Advantages
- High Speed Stability: Maintains precision performance up to 600 RPM
- Wide Temperature Range: Reliable operation from -20°C up to +80°C
- Versatile Mounting: Optimized for both vertical and horizontal positions
- Maintenance-Free Design: Sealed hybrid assembly for industrial longevity
- Industrial Build: Robust 95 mm housing for high-specification machinery
- Hybrid Signal Integrity: Designed to prevent crosstalk between power and data
Technical Specifications
| Channels | 4x 10A Power / 1x Gigabit Ethernet |
|---|---|
| Max. Data Speed | 1 Gbps (1000Base-T) |
| Outer Diameter | 95 mm |
| Rated Current | ≤ 10A Per Ring |
| Operating Voltage | ≤ 240VAC/DC |
| Rotation Speed | 0 - 600 RPM |
| Electrical Interference | ≤ 0.01 Ω (5 rpm, 6 VDC, 0.2 A) |
| Contact Material | Precious Metals |
| Operating Temperature | -20°C to +80°C |
| Cable Length | 1000 mm (Stator / Rotor) |
| Working Position | Vertical and Horizontal |
