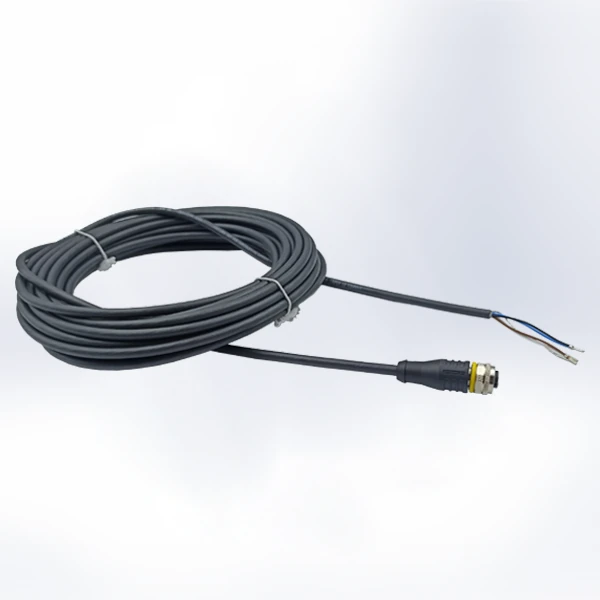

Turck RKS4.4T-5/TXL Sensor/Actuator Cable - 5m
The Turck RKS4.4T-5/TXL is a professional-grade 5-meter connection solution engineered for the most demanding industrial automation environments. This shielded M12 straight connector cable features a high-performance PUR (Polyurethane) jacket, offering superior resistance to oils, coolants, and mechanical stress. Designed for high-flex drag chain applications and washdown zones, it provides reliable 4-pin connectivity with gold-plated contacts to ensure maximum signal integrity in robotics and automated processing systems.
Product Features
- Premium Connectivity: M12 straight female connector with A-coding and nickel-plated brass locking
- Environmental Protection: IP67 and IP69K rated, ideal for high-pressure cleaning environments
- Chemical Integrity: Silicon-free, halogen-free, and highly resistant to industrial oils and coolants
- Motion Capability: Fully drag chain compatible for continuous flexing applications
- Extended Thermal Range: Stationary operation from -50°C up to +80°C
- High Signal Quality: Gold-plated contacts for low-resistance and corrosion-free transmission
Usage Areas
- Factory Automation: Core sensor and actuator interfacing for production lines
- Robotic Applications: Flexible multi-axis cabling for robotic arms and end-effectors
- Packaging Systems: Connectivity for high-speed processing and sorting machinery
- Automotive Industry: Robust wiring for assembly plants and welding cells
- Material Handling: Reliable connectivity for conveyors and automated guided vehicles (AGVs)
- Control Systems: Standardized interfacing for industrial PLC and I/O modules
Technical Specifications
| Manufacturer | Turck |
|---|---|
| Category / Series | Cable Connectors / RKS4.4T Series |
| Operating Voltage | 250V |
| Current Rating | 4A |
| Insulation Resistance | > 30.5 MΩ/km |
| Forward Resistance | Max. 57 Ω/km |
| Cable Specifications | 5m, PUR, Black, Ø 5.3 mm (4 x 0.34 mm²) |
| Connector Specifications | 1 x M12 (Straight, A-coded), Nickel-plated Brass |
| Protection Class / Rating | Class III / IP67, IP69K |
| Resistances | Silicon/Halogen-free, Oils and Coolants resistant |
| Drag Chain Compatible | Yes |
| Ambient Temp (Moving) | -25°C to +80°C |
| Ambient Temp (Stationary) | -50°C to +80°C |
Technical Documentation
Access the official technical datasheet for wiring pinouts, mechanical dimensions, and cable bending radius specifications.
