Ro-enc CHS60.1 Manual Pulse Generator (Hand Wheel)
The Ro-enc CHS60.1 is a high-precision Manual Pulse Generator (MPG), engineered for seamless integration with CNC machinery and precision positioning systems. By generating electrical pulses through manual rotation, it allows operators to move equipment across predetermined distances with extreme accuracy. Utilizing advanced optical theory and housed in an IP50-rated enclosure, it provides reliable control for multi-axis configurations with selectable magnification levels (X1, X10, X100).
Product Highlights
- Multi-Axis Control: X, Y, Z and 4th axis (2/3/4/5/6 Axes Optional)
- Selectable Magnification: X1, X10, and X100 scaling for precise jogging
- Optical Theory: High-reliability sensing to measure distance and speed
- Dual Voltage Support: Compatible with 5-15V or 10-30V power supplies
- Robust Output: Voltage/Line Driver circuit for superior signal integrity
- Precision Pulse: Selectable output counts of 25 or 100 pulses per rotation
Primary Applications
- CNC Machining: Manual tool positioning and coordinate setting
- Industrial Robotics: Manual jogging and teaching mode operations
- Positioning Systems: Fine adjustment of linear and rotary actuators
- Lathes & Milling: Manual override and feed control for precision metalwork
- Laboratory Systems: Speed and distance calibration in test environments
- Automation Control: General purpose HMI for motion control devices
Technical Specifications
| Brand Name | Ro-enc |
|---|---|
| Description | CHS60.1 Hand wheel |
| Type | Hand Wheel (Manual Pulse Generator) |
| Usage | To measure distance and speed |
| Theory | Optical theory |

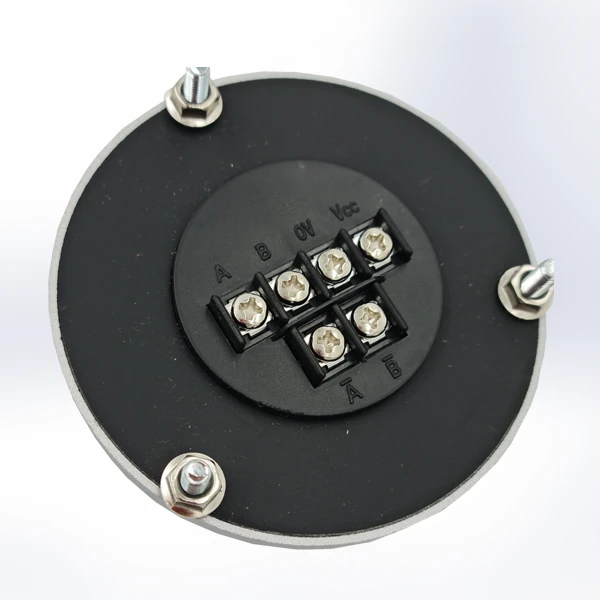

| Output Circuit | Voltage/Line Driver |
| Supply Voltage | 5-15V / 10-30V |
| Output Pulse No | 25 / 100 |
| Slew Speed | 600r/min |
| Optional axis | X Y Z 4 (2/3/4/5/6 Axes Optional) |
| Magnification | X1 X10 X100 |
| Frequency Response | 0-50kHz |
| Protection Class | IP50 |
| Operating Temperature | -10°C to +60°C |
