GIGAVAC GV211BAX 100 A, 900 V DC Contactor
Product Code:GV211BAX
Stock:820
Free shipping over $500
Fast & reliable service
Product Description
ADD TO BASKET

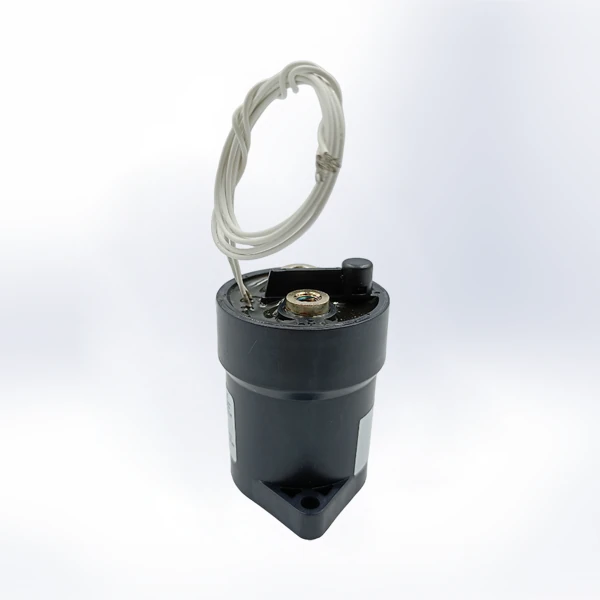

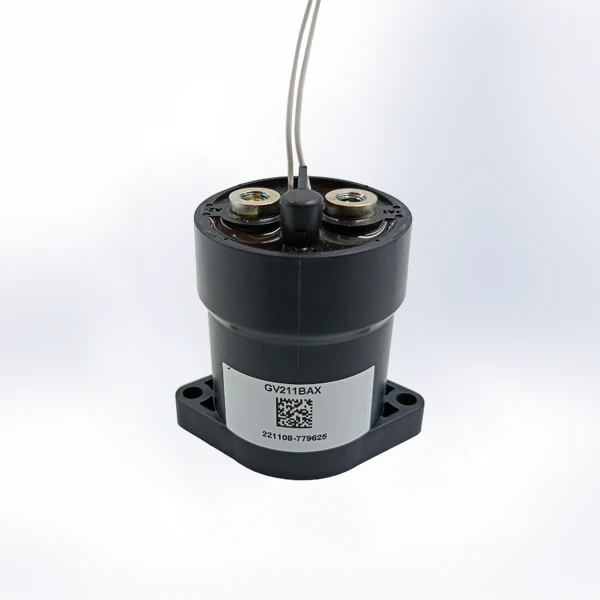

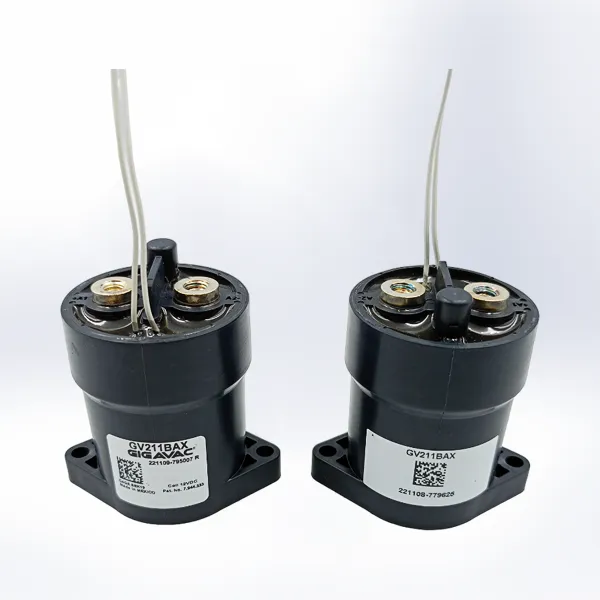

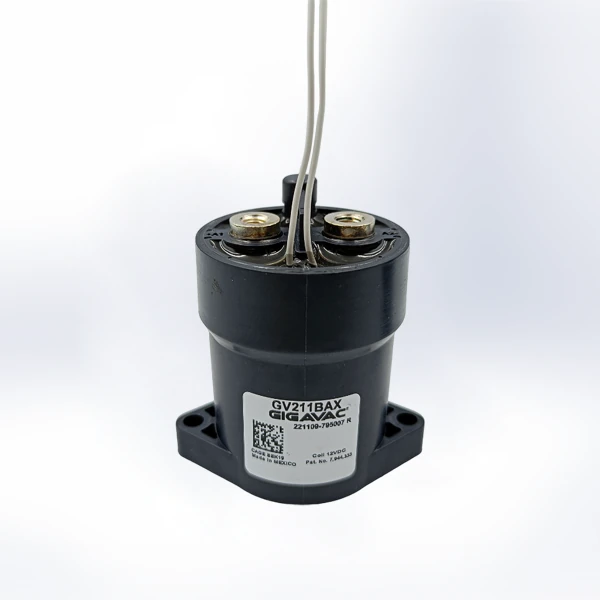

GIGAVAC GV211BAX 100 A, 900 V DC Contactor
GIGAVAC GV211BAX DC Contactor - 100A 12V-900Vdc
The Sensata | GIGAVAC GV211BAX is a high-performance, hermetically sealed DC contactor engineered for excellence in the most demanding electrical environments. Part of the renowned GV210 Series, this contactor features a specialized gas-filled construction that ensures reliable operation and superior arc suppression. Designed to support a wide voltage range from 12Vdc to 900Vdc, it can consistently carry a 100A continuous current, even during challenging hot-switching cycles. Its ultra-compact and lightweight design allows for flexible mounting in any position or orientation, making it a premier choice for battery electric vehicles, DC fast charging stations, and advanced energy storage systems where space is at a premium and reliability is non-negotiable.
Technical Excellence
- High Voltage Range: Optimized for DC load switching from 12V up to 900Vdc
- 100A Continuous Current: Robust current handling with reliable hot-switching capability
- Hermetically Sealed: Gas-filled chamber prevents contact oxidation and ensures safety
- Compact & Lightweight: High power density in a small 190g package
- Superior Ingress Protection: Exceeds IP67 and IP69 standards for extreme environmental resistance
- Industrial Certifications: Fully compliant with RoHS, CE, and IATF-16949 manufacturing standards
Operational Advantages
- Flexible Mounting: Can be installed in any orientation to suit complex system layouts
- Mechanical Longevity: Rated for 1,000,000 cycles to ensure long-term maintenance-free use
- Extreme Resilience: Meets MIL-STD-810G standards for salt fog and harsh conditions
- Safe Hot-Switching: Engineered to handle making and breaking loads under power safely
- Versatile Application: Ideal for EV motor protection, PV controls, and battery management
- Thermal Stability: Reliable performance across a wide -40°C to +85°C temperature range
Technical Specifications
| Model / Code | GIGAVAC GV211BAX |
|---|---|
| Contact Arrangement | Main Contacts SPST-NO |
| Operating Voltage (Max) | 900 Vdc |
| Nominal Coil Voltage | 12 Vdc |
| Rated Current | 100 A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -40°C to +85°C |
| IP Rating | Exceeds IP67 & IP69 |
| Weight | 190 g |
| Salt Fog Spray | MIL-STD-810G |
| Sealing Type | Hermetic Gas-Filled Seal |
Technical Datasheet
For detailed mechanical drawings, terminal configuration, and mounting orientation guidelines, view the official GIGAVAC datasheet.
