GIGAVAC GX34CDC DC Contactor
Product Code: GX34CDC
Made to order — we confirm the delivery date with your order
Product Description

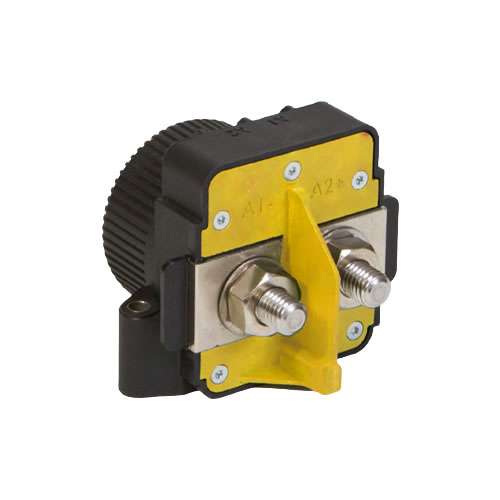

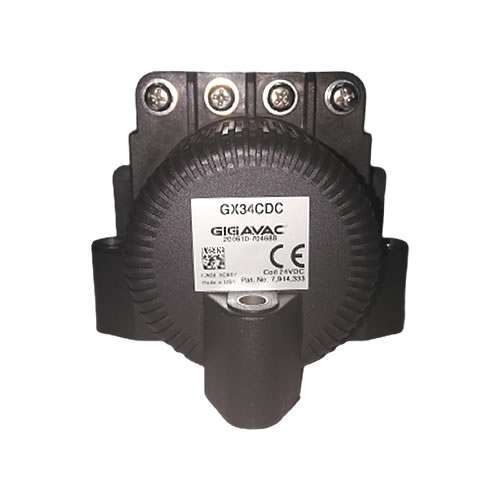

GIGAVAC GX34CDC DC Contactor - 350A 24V-800VDC (Aux NC)
The GIGAVAC GX34CDC is a high-performance, RoHS-compliant DC contactor engineered to switch loads up to 800VDC with industrial-grade reliability. Designed for mission-critical power management, this compact unit features an integrated SPST-NC auxiliary contact for real-time status monitoring and boasts an exceptional mechanical life of one million cycles. Its robust, hermetically sealed construction allows for mounting in any position and ensures seamless operation in the most challenging environments, including underwater and extreme temperatures ranging from -55°C to +85°C. As a premier solution for heavy-duty systems, the GX34CDC provides 350A continuous current handling in a compact, 0.5 kg package.
Product Highlights
- Integrated Monitoring: Features an SPST, Normally Closed (NC) auxiliary contact
- Superior Longevity: Rated for an exceptional mechanical life of 1,000,000 cycles
- 350A Rated Current: Reliable power handling for high-capacity DC systems
- Environmental Resilience: Suitable for underwater use and extreme temperatures
- Universal Mounting: Flexible installation in any position or orientation
- Total Protection: Exceeds IP67 and IP69K standards for water and dust ingress
Fields of Use
- Heavy Trucks, Equipment and Buses
- Electric & Hybrid Vehicles / Emergency Vehicles
- Mining, Oil and Factory Automation
- Solar, Wind, and Wave Power Systems
- Battery Charging, Fuel Cells and Battery Backup
Technical Specifications
| Contact Arrangement | Main Contacts SPST-NO |
|---|---|
| Contact Voltage, Operating Max. | 12V - 800Vdc |
| Coil Voltage, Nominal | 24Vdc |
| Rated Current | 350A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -55 to +85 °C |
| Auxiliary Contact | SPST, Normally Closed (NC) |
| IP Rating | Exceeds IP67 & IP69K |
| Salt Fog Rating | MIL-STD-810 |
| Weight | 0.5 Kg |
Technical Datasheet
Access detailed technical drawings, terminal torque specifications, mounting footprints, and high-voltage performance curves in the official GIGAVAC GX34CDC datasheet.
