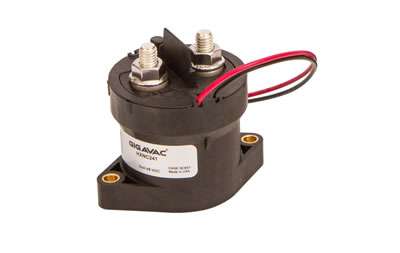

GIGAVAC HX241BAB High Voltage DC Contactor
Product Code: HX241BAB
In stock — 32 available
Product Description
GIGAVAC HX241BAB High Voltage DC Contactor
GIGAVAC introduces the HX241BAB High-Voltage EPIC® sealed DC Contactor, designed for switching DC loads across a wide voltage range from 12 to 1500VDC.
Ideal for applications such as solar power, photovoltaic systems, inverters, battery packs, combiner boxes, and DC arc fault interrupter systems, or any other high-voltage DC setup.
GIGAVAC HX241BAB High Voltage DC Contactor - 400A 12V-1500VDC
The GIGAVAC HX241BAB is a premier, EPIC® sealed high-voltage DC contactor engineered for mission-critical power management. Designed to switch DC loads across an extensive range from 12V up to 1500VDC, this compact unit offers industrial-grade reliability with a 400A current rating. Featuring an integrated SPST-NO auxiliary contact for precise status monitoring, the HX241BAB is built for extreme durability, boasting a mechanical life of one million cycles. Its lightweight 0.38 kg design and hermetic sealing ensure optimal performance in the most challenging environments, making it an ideal solution for advanced energy systems.
Product Highlights
- High Voltage Capacity: Engineered for switching loads up to 1500VDC
- EPIC® Sealed Technology: Hermetically sealed for protection against harsh environments
- Integrated Monitoring: Features an SPST, Normally Open (NO) auxiliary contact
- Superior Longevity: Rated for a mechanical life of 1,000,000 cycles
- Extreme Resilience: Reliable operation in temperatures from -55°C to +85°C
- Lightweight Design: High power density in a compact 0.38 kg package
Fields of Use
- Solar Power & Photovoltaic Systems
- Inverters and Battery Management Systems (BMS)
- Battery Packs and Combiner Boxes
- DC Arc Fault Interrupter Systems
- Electric Vehicle (EV) Charging Infrastructure
- Energy Storage Systems (ESS)
Technical Specifications
| Contact Arrangement | Main Contacts SPST-NO |
|---|---|
| Contact Voltage, Operating Max. | 12V - 1500Vdc |
| Coil Voltage, Nominal | 12Vdc |
| Rated Current | 400A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -55 to +85 °C |
| Auxiliary Contact | SPST-NO Normally Open |
| IP Rating | Exceeds IP67 & IP69K |
| Salt Fog Rating | MIL-STD-810 |
| Weight | 0.38 Kg |
Technical Datasheet
Download the official GIGAVAC HX241BAB datasheet for comprehensive technical documentation, including dimensional drawings, terminal configurations, mounting patterns, and high-voltage performance curves.
