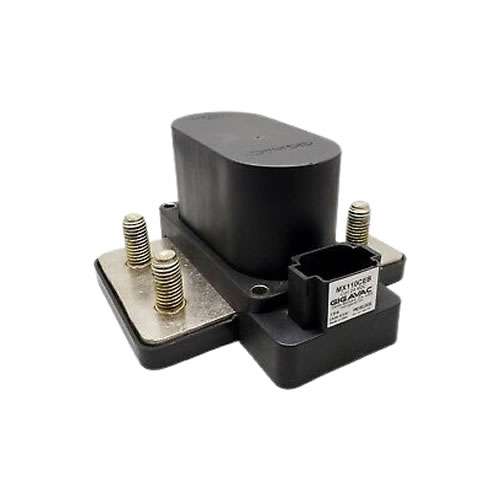

GIGAVAC MX110CEB Millitary DC Contactor
Product Code: MX110CEB
In stock — 4 available
Product Description
GIGAVAC MX110CEB DC Contactor
The GIGAVAC MX110CEB sealed DC Contactor is built to meet MIL-R-6106 standards, making it ideal for military vehicles and heavy-duty applications. Its ceramic-to-metal weld construction allows reliable operation in extreme temperatures up to 200°C. The silver contacts provide long-lasting performance and resistance to contact welding, even in high inrush and overload conditions.
GIGAVAC MX110CEB DC Contactor - 1000A 12V-48VDC (MIL-SPEC)
The GIGAVAC MX110CEB is a high-performance, hermetically sealed DC contactor engineered to meet the rigorous MIL-R-6106 standards. Specifically designed for military vehicles and heavy-duty industrial applications, this unit features a robust ceramic-to-metal weld construction that ensures reliable operation in extreme environments. With a massive 1000A continuous current rating and high-grade silver contacts, it offers exceptional resistance to contact welding and superior performance during high inrush or overload conditions. The integrated SPST-NO auxiliary contact provides real-time monitoring, making it a premier solution for mission-critical power management systems.
Product Highlights
- MIL-SPEC Certified: Built to meet MIL-R-6106 and MIL-STD-810G standards
- 1000A Rated Current: Engineered for extreme high-power DC distribution
- Silver Contacts: Provides long-lasting performance and high weld resistance
- Hermetic Sealing: Ceramic-to-metal weld construction for total protection
- Extreme Resilience: Operational from -55°C up to +100°C
- Integrated Monitoring: Features an SPST, Normally Open (NO) auxiliary contact
Fields of Use
- Military Ground Vehicles and Defense Systems
- Heavy-Duty Construction and Mining Equipment
- High-Capacity Battery Management Systems (BMS)
- Industrial Power Distribution Units (PDU)
- Emergency Power and Backup Systems
- Large-Scale Marine Power Applications
Technical Specifications
| Contact Arrangement | Silver / SPST / NO |
|---|---|
| Contact Voltage, Operating Max. | 12V - 48Vdc |
| Coil Voltage, Nominal | 24Vdc |
| Rated Current | 1000A |
| Mechanical Life | 300,000 Cycles |
| Operating Temperature | -55 to +100 °C |
| Auxiliary Contact | SPST, Normally Open (NO) |
| IP Rating | Hermetic (10 E-9 atm cc/sec) |
| Salt Spray Corrosion | MIL-STD-810G |
| Weight | 1.6 Kg |
Technical Datasheet
Download the official GIGAVAC MX110CEB datasheet for comprehensive technical documentation, including MIL-SPEC compliance data, terminal torque settings, mounting footprints, and performance curves.
