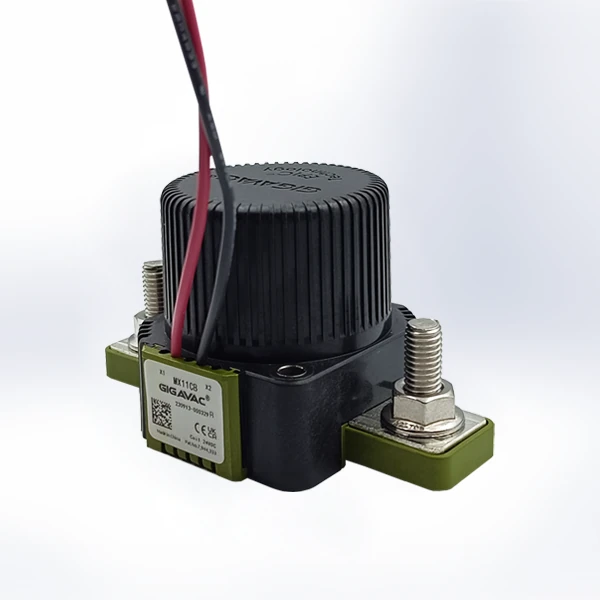

Gigavac MX11CB 48Vdc 150A DC Contactor
Product Code: MX11CB
Made to order — we confirm the delivery date with your order
Product Description
Gigavac MX11CB 48Vdc 150A DC Contactor
The GIGAVAC MX11CB sealed DC Contactor is built to meet MIL-R-6106 standards, making it ideal for military vehicles and heavy-duty applications. Its ceramic-to-metal weld construction allows reliable operation in extreme temperatures up to 200°C. The silver contacts provide long-lasting performance and resistance to contact welding, even in high inrush and overload conditions.
GIGAVAC MX11CB DC Contactor - 150A 12-48VDC
The GIGAVAC MX11CB is a high-reliability, hermetically sealed DC contactor engineered to meet stringent MIL-R-6106 standards. Specifically designed for military vehicles and heavy-duty industrial applications, its unique ceramic-to-metal weld construction ensures robust performance in the harshest environments. Featuring high-grade silver contacts, the MX11CB provides exceptional resistance to contact welding and superior longevity, even during high inrush and overload conditions. With a continuous rated current of 150A and a hermetic seal leak rate of less than 1x10^-9 atm cc/sec, it is the ultimate choice for power systems requiring uncompromising durability and safety.
Product Highlights
- MIL-SPEC Standards: Built to comply with MIL-R-6106 requirements
- Ceramic-to-Metal Weld: Robust construction for extreme temperature resilience
- Superior Contacts: Silver contacts for high inrush and weld resistance
- Ultra-Hermetic Seal: Certified leak rate of 10 E-9 atm cc/sec for total isolation
- 24VDC Nominal Coil: Optimized for standard military and industrial control power
- Thermal Capability: Designed to maintain integrity in high-heat environments
Primary Applications
- Military Tactical and Armored Vehicles
- Heavy-Duty Industrial Power Management
- High-Voltage DC Battery Storage Systems
- Aerospace and Ground Support Equipment
- Extreme Environment Power Distribution Units
- Electric and Hybrid Drivetrains for Specialty Vehicles
Technical Specifications
| Contact Arrangement | Silver / SPST-NO (Form X) |
|---|---|
| Max Operating Voltage | 12 - 48 VDC |
| Continuous Rated Current | 150 Amps |
| Nominal Coil Voltage | 24 VDC |
| Mechanical Life | 300,000 Cycles |
| Operating Temperature | -55 to +100 °C |
| Auxiliary Contact | None |
| IP Rating | Hermetic (10 E-9 atm cc/sec) |
| Standard Compliance | MIL-R-6106 |
| Weight | 460 grams |
Technical Datasheet
Download the official GIGAVAC MX11CB datasheet for complete technical documentation, including mounting dimensions, coil performance data, and MIL-SPEC certifications.
