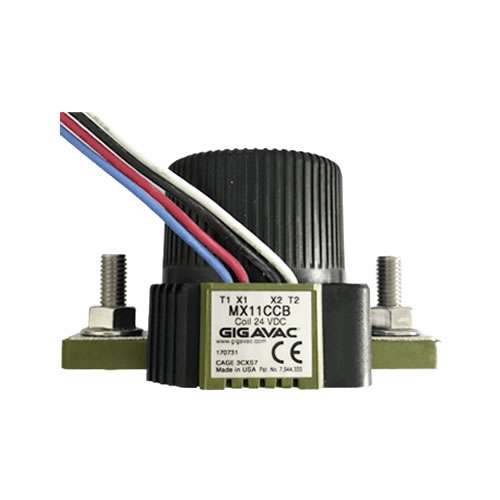

GIGAVAC MX11CCB DC Contactor
Product Code: MX11CCB
In stock — 50 available
Product Description
GIGAVAC MX11CCB DC Contactor
The GIGAVAC MX11CCB sealed DC Contactor is built to meet MIL-R-6106 standards, making it ideal for military vehicles and heavy-duty applications. Its ceramic-to-metal weld construction allows reliable operation in extreme temperatures up to 200°C. The silver contacts provide long-lasting performance and resistance to contact welding, even in high inrush and overload conditions.
GIGAVAC MX11CCB DC Contactor - 150A 24V-48VDC (MIL-SPEC)
The GIGAVAC MX11CCB is a high-performance, hermetically sealed DC contactor engineered to meet the stringent MIL-R-6106 standards. Ideal for military vehicles and heavy-duty industrial applications, this unit features a superior ceramic-to-metal weld construction that ensures reliable operation even in extreme environments. With a 150A continuous current rating and high-grade silver contacts, it offers exceptional resistance to contact welding and long-lasting performance under high inrush or overload conditions. Its integrated SPST-NO auxiliary contact and compact 460-gram design make it a premier solution for mission-critical power management where reliability is non-negotiable.
Product Highlights
- MIL-SPEC Certified: Designed to meet MIL-R-6106 and MIL-STD-810G standards
- High Temperature Performance: Ceramic-to-metal weld construction for reliability
- Silver Contacts: Excellent resistance to contact welding and superior conductivity
- Hermetic Sealing: Advanced protection (10 E-9 atm cc/sec) against environmental factors
- Integrated Monitoring: Features an SPST, Normally Open (NO) auxiliary contact
- Compact Power: 150A capacity in a lightweight 460g package
Fields of Use
- Military Ground Vehicles and Tactical Systems
- Heavy-Duty Construction and Mining Equipment
- Aerospace and Defense Power Systems
- High-Reliability Battery Management Systems (BMS)
- Emergency Power and Industrial Automation
- Marine High-Power DC Applications
Technical Specifications
| Contact Arrangement | Silver / SPST / NO |
|---|---|
| Contact Voltage, Operating Max. | 12V - 48Vdc |
| Coil Voltage, Nominal | 24Vdc |
| Rated Current | 150A |
| Mechanical Life | 300,000 Cycles |
| Operating Temperature | -55 to +100 °C |
| Auxiliary Contact | SPST, Normally Open (NO) |
| IP Rating | Hermetic (10 E-9 atm cc/sec) |
| Salt Spray Corrosion | MIL-STD-810G |
| Weight | 460 Grams |
Technical Datasheet
Download the official GIGAVAC MX11CCB datasheet for comprehensive technical documentation, including dimensional drawings, MIL-SPEC compliance details, mounting footprints, and performance curves.
