GIGAVAC P125BDA MiniTACTOR
Product Code: P125BDA
In stock — 364 available
Product Description

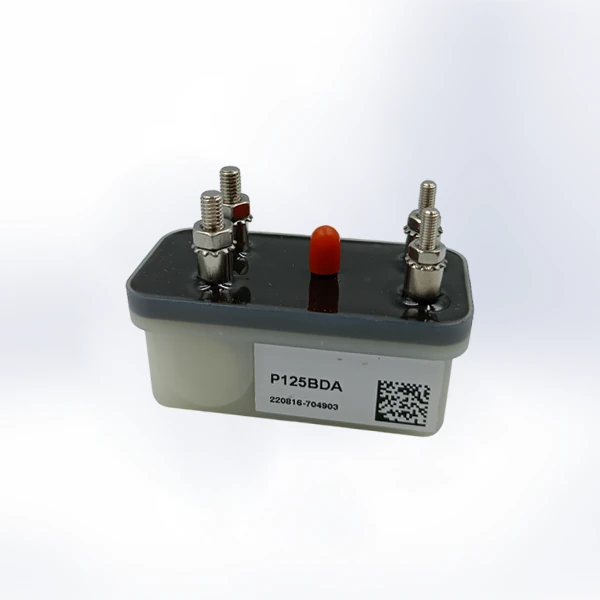

GIGAVAC P125BDA MiniTACTOR
The GIGAVAC P125BDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor. It is designed and manufactured in the USA.
The P-Series contactor can be quickly installed in any position on a panel or PCB. Both the coil and contacts are enclosed in a hermetically sealed chamber, ensuring reliable switching in various environmental conditions. Additionally, P-Series contactors are significantly lighter than other models, weighing less than 140 grams.
GIGAVAC P125BDA MiniTACTOR™ - 30A 12V-1200VDC
The GIGAVAC P125BDA, a specialized member of the MiniTACTOR™ series, is an ultra-compact and lightweight power contactor engineered for high-voltage DC applications where space and weight are the most critical factors. Designed and manufactured in the USA, this budget-friendly unit weighs only 90 grams while maintaining the capability to switch loads up to 1200VDC. Its hermetically sealed chamber ensures reliable switching and total protection of the coil and contacts in various environmental conditions. With an exceptional mechanical life of one million cycles and the flexibility to be installed in any position on a panel or PCB, the P125BDA is a premier choice for modern, high-density power management systems.
Product Highlights
- High Voltage Switching: Capable of handling DC loads up to 1200VDC
- Ultra-Lightweight: Compact professional design weighing only 90 grams
- Hermetically Sealed: Safe operation in hazardous, wet, or demanding environments
- Superior Longevity: Rated for a mechanical life of 1,000,000 cycles
- Total Protection: Fully rated for IP67 and IP69K environmental standards
- Flexible Mounting: Easily installs in any orientation on panels or PCBs
Fields of Use
- Electric Vehicles (EV) and Charging Infrastructure
- Solar Power Systems and Photovoltaic Inverters
- Battery Management Systems (BMS)
- High-Voltage Energy Storage Systems (ESS)
- Industrial Automation and DC Power Controls
- Lightweight Aerospace and Defense Electronics
Technical Specifications
| Contact Arrangement | SPST-NO (Normally Open) |
|---|---|
| Contact Voltage, Operating Max. | 1200Vdc |
| Coil Voltage, Nominal | 12Vdc |
| Rated Current | 30A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -40 to +65 °C |
| Auxiliary Contact | None |
| IP Rating | IP67 and IP69K |
| Weight | 90 Grams |
Technical Datasheet
Download the official GIGAVAC P125BDA MiniTACTOR™ datasheet for complete technical documentation, including terminal configurations, mounting footprints, and performance curves.
