GIGAVAC P195BDA MiniTACTOR
Product Code: P195BDA
In stock — 296 available
Product Description

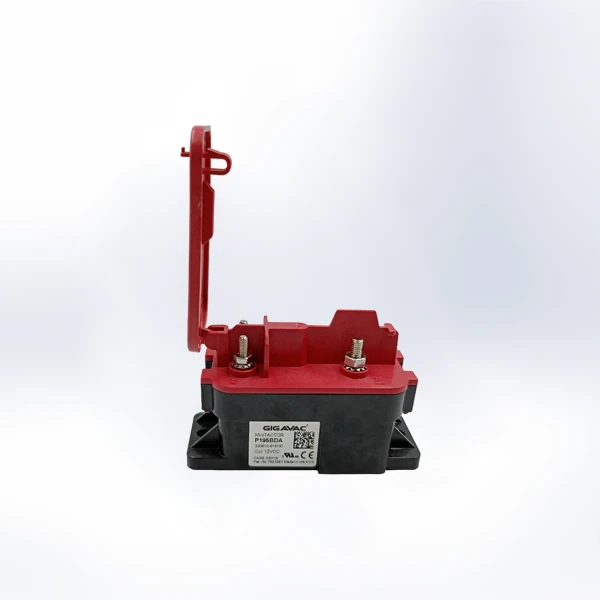

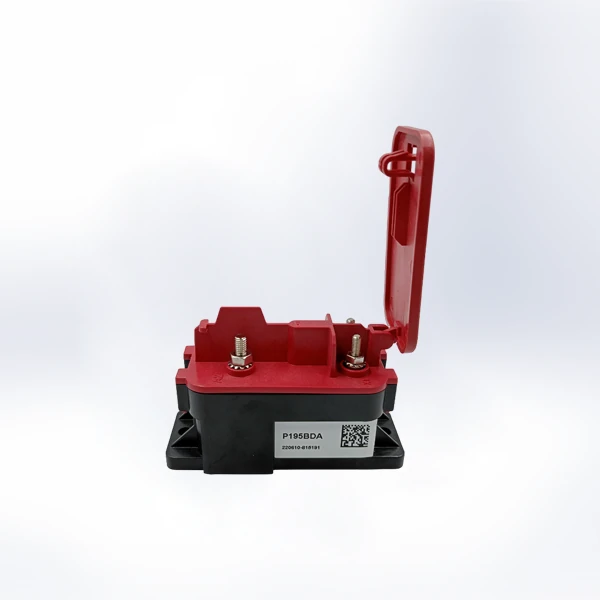

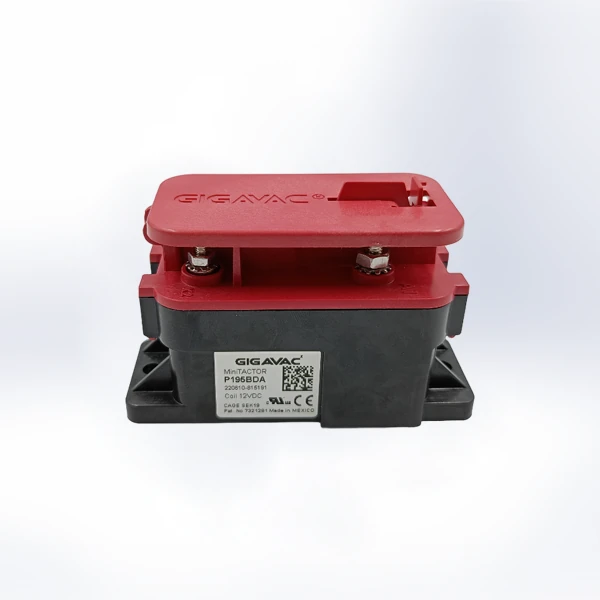

GIGAVAC P195BDA MiniTACTOR
The GIGAVAC P195BDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor. It is designed and manufactured in the USA.
The P-Series contactor can be quickly installed in any position on a panel or PCB. Both the coil and contacts are enclosed in a hermetically sealed chamber, ensuring reliable switching in various environmental conditions. Additionally, P-Series contactors are significantly lighter than other models, weighing less than 140 grams.
GIGAVAC P195BDA MiniTACTOR™ - 80A 12V-1500VDC
The GIGAVAC P195BDA is a high-performance power contactor from the renowned MiniTACTOR™ series, specifically engineered for high-voltage DC applications where space, weight, and reliability are critical constraints. Designed and manufactured in the USA, this lightweight unit (only 135g) is capable of switching loads up to an impressive 1500VDC with a continuous current rating of 80A. Its hermetically sealed chamber protects both the 12Vdc coil and the contacts, ensuring consistent load-break performance and safety in hazardous or harsh environmental conditions. With a mechanical life of one million cycles and flexible installation options for panels or PCBs, the P195BDA is a premier solution for advanced high-voltage energy management.
Product Highlights
- Extreme Voltage Capacity: Reliable switching for DC loads up to 1500VDC
- 80A Rated Current: Robust power handling in a MiniTACTOR™ frame
- Ultra-Lightweight: Professional compact design weighing only 135 grams
- Hermetically Sealed: Safe operation in hazardous, wet, or dusty environments
- Superior Longevity: Rated for a mechanical life of 1,000,000 cycles
- Total Protection: Fully rated for IP67 and IP69K environmental standards
Fields of Use
- Electric Vehicles (EV) and High-Voltage Charging Infrastructure
- Solar Power Systems and Photovoltaic Inverters
- Advanced Battery Management Systems (BMS)
- High-Voltage DC Energy Storage Systems (ESS)
- Industrial Automation and Heavy-Duty DC Controls
- Defense and Aerospace Power Distribution Units
Technical Specifications
| Contact Arrangement | SPST-NO (Normally Open) |
|---|---|
| Contact Voltage, Operating Max. | 1500Vdc |
| Coil Voltage, Nominal | 12Vdc |
| Rated Current | 80A |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -40 to +85 °C |
| Auxiliary Contact | None |
| IP Rating | IP67 and IP69K |
| Weight | 135 Grams |
Technical Datasheet
Download the official GIGAVAC P195BDA MiniTACTOR™ datasheet for complete technical documentation, including terminal configurations, mounting footprints, and performance curves.
