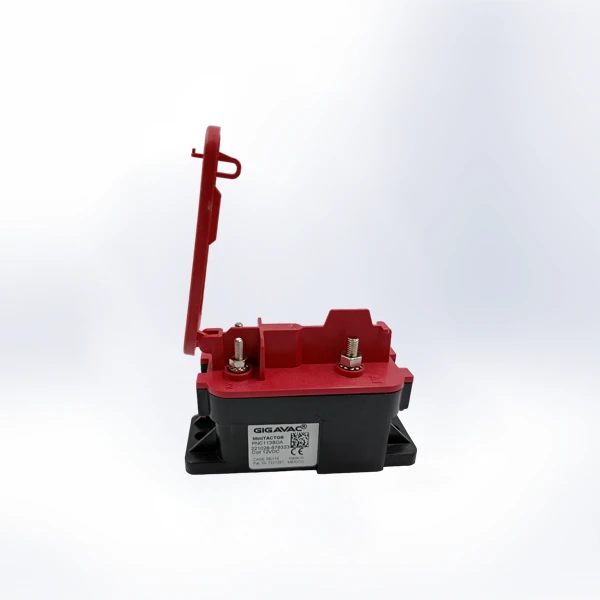

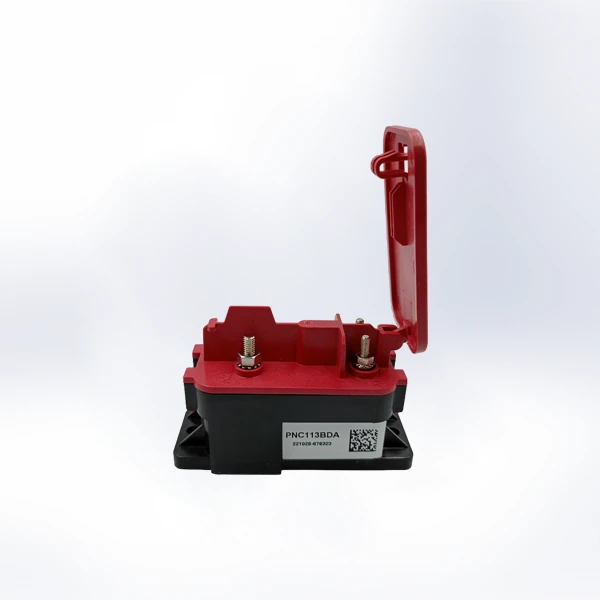

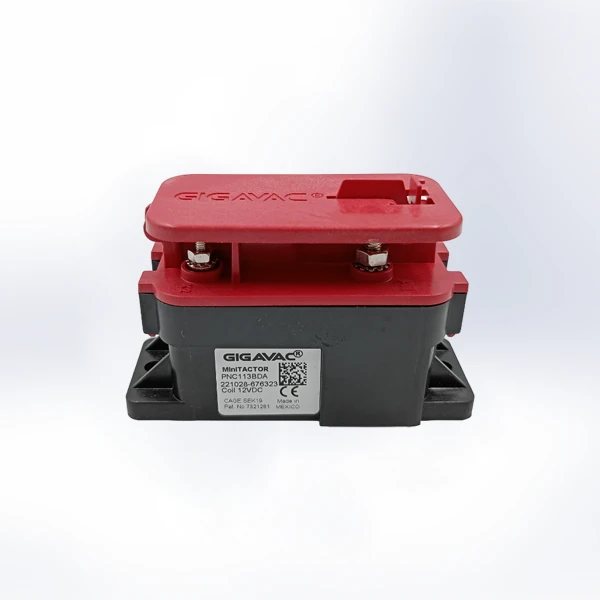

Gigavac PNC113BDA DC Contactor
Product Code: PNC113BDA
In stock — 134 available
Product Description
Gigavac PNC113BDA DC Contactor
The GIGAVAC PNC113BDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor. It is designed and manufactured in the USA.
The P-Series contactor can be quickly installed in any position on a panel or PCB. Both the coil and contacts are enclosed in a hermetically sealed chamber, ensuring reliable switching in various environmental conditions. Additionally, P-Series contactors are significantly lighter than other models, weighing less than 140 grams.
GIGAVAC PNC113BDA MiniTACTOR™ - 30A 1500VDC (SPST-NC)
The GIGAVAC PNC113BDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor specifically designed and manufactured in the USA. This P-Series model features a Single Pole Single Throw - Normally Closed (SPST-NC) contact arrangement, making it ideal for safety and isolation circuits. Engineered to handle high-voltage loads up to 1500Vdc, it is enclosed in a hermetically sealed chamber that ensures reliable switching in diverse environmental conditions. Weighing only 135 grams, it offers an exceptional power-to-weight ratio and can be quickly installed in any orientation on a panel or PCB.
Product Highlights
- Normally Closed (NC): Ideal for safety interlocks and isolation circuits
- Ultra-High Voltage: Rated for operating voltages up to 1500Vdc
- Hermetically Sealed: Coil and contacts protected from environmental factors
- Lightweight Design: Highly efficient footprint weighing only 135 grams
- Extreme Sealing: Certified for IP67 and IP69K (pressure washing protection)
- USA Quality: Designed and manufactured in the United States
Primary Applications
- High-Voltage Battery Management Systems (BMS)
- Safety Interlock and Emergency Stop Circuits
- Solar/Photovoltaic System Isolation
- Electric Vehicle (EV) Charging Infrastructure
- Industrial High-Voltage Power Distribution
- Medical Power Supply and Isolation Equipment
Technical Specifications
| Contact Arrangement | SPST-NC (Normally Closed) |
|---|---|
| Contact Voltage, Operating Max. | 1500 Vdc |
| Coil Voltage, Nominal | 12 Vdc |
| Rated Current (@ 25°C) | 30 A |
| Rated Current (@ 85°C) | 15 A |
| Mechanical Life | 100,000 Cycles |
| Temperature, Operating Range | -40 to +85 °C |
| IP Rating | IP67 & IP69K |
| Weight | 135 grams |
Technical Datasheet
Download the official GIGAVAC PNC113BDA MiniTACTOR™ datasheet for complete technical documentation, including PCB footprint drawings, mounting blueprints, and coil charts.
