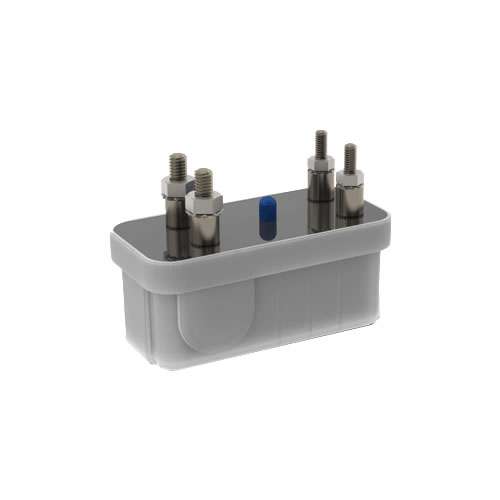

Gigavac PNC113FDA DC Contactor
Product Code: PNC113FDA
In stock — 17 available
Product Description
Gigavac PNC113FDA DC Contactor
The GIGAVAC PNC113FDA, part of the MiniTACTOR™ series, is a compact, lightweight, and budget-friendly power contactor. It is designed and manufactured in the USA.
The P-Series contactor can be quickly installed in any position on a panel or PCB. Both the coil and contacts are enclosed in a hermetically sealed chamber, ensuring reliable switching in various environmental conditions. Additionally, P-Series contactors are significantly lighter than other models, weighing less than 140 grams.
GIGAVAC PNC113FDA MiniTACTOR™ - 30A 1500VDC (SPST-NC)
The GIGAVAC PNC113FDA is a specialized, normally closed power contactor within the MiniTACTOR™ series, designed for precision capacitor discharge and high-voltage dump switch applications. Manufactured in the USA, this compact unit is engineered to handle peak operating voltages up to 1500Vdc with a 48Vdc nominal coil. Its hermetically sealed design ensures reliable switching across extreme environmental conditions, while its ultra-lightweight 135-gram footprint makes it ideal for space-constrained installations. With a mechanical life of 100,000 cycles and certifications for IP67/IP69K, the PNC113FDA offers a robust and budget-friendly solution for advanced high-voltage safety and isolation circuits.
Product Highlights
- Normally Closed (NC): Essential for discharge and safety interlock circuits
- High Isolation: Rated for superior performance up to 1500Vdc
- Compact MiniTACTOR™: Lightweight 135g design for OEM integration
- 48VDC Nominal Coil: Optimized for specialized industrial control power
- Position Insensitive: Can be mounted in any orientation for ease of installation
- Extreme Sealing: Exceeds IP67 and IP69K environmental ratings
Primary Applications
- Capacitor Discharge and High-Voltage Dump Switching
- HVDC Battery Management Systems (BMS) Safety Isolation
- Solar and Photovoltaic System Emergency Discharge
- Electric Vehicle (EV) Safety Interlock and Grounding
- Industrial High-Voltage Power Distribution Units
- Medical Diagnostic and Laboratory Isolation Equipment
Technical Specifications
| Contact Arrangement | SPST-NC (Normally Closed) |
|---|---|
| Contact Voltage, Operating Max. | 1500 Vdc |
| Coil Voltage, Nominal | 48 Vdc |
| Rated Current (@ 25°C) | 30 Amps |
| Rated Current (@ 85°C) | 15 Amps |
| Mechanical Life | 100,000 Cycles |
| Temperature, Operating Range | -40° to +85°C |
| Auxiliary Contact | None |
| IP Rating | IP67 & IP69K |
| Weight | 135 grams |
Technical Datasheet
Download the official GIGAVAC PNC113FDA MiniTACTOR™ datasheet for comprehensive technical documentation, including dimensional blueprints, resistive closing estimates, and coil current ratings.
