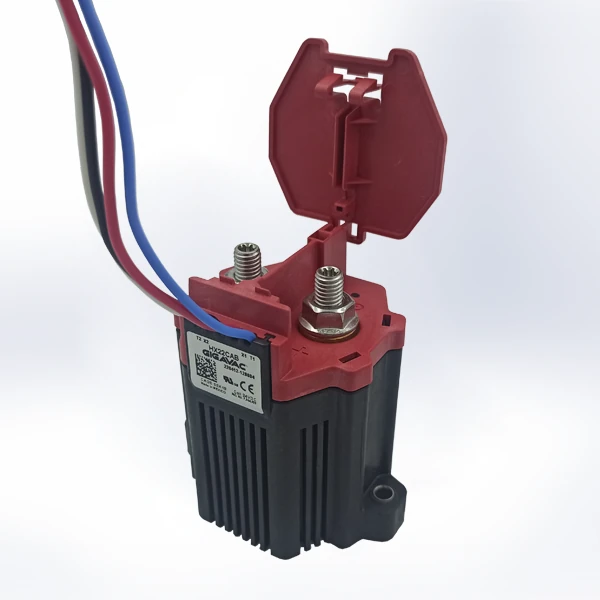

HX22CAB GIGAVAC DC Contactor
Product Code: HX22CAB
In stock — 10 available
Product Description
HX22CAB GIGAVAC DC Contactor
The HX22CAB is a compact, high-efficiency contactor designed for high-voltage DC applications exceeding 1000Vdc. It is UL508 recognized and load break rated for 1000Vdc use. Built to meet UL1604 standards, it is suitable for hazardous environments, including Class I, II, Div 2, and Class III locations. Featuring a patented EPIC® Hermetic Seal, it exceeds IP67-69 standards, ensuring no exposed arcing in open-air environments. Ideal for solar, photovoltaic, inverters, battery packs, combiner boxes, and DC arc fault interrupter systems. Its high-efficiency dual DC coils require minimal 12, 24, or 48Vdc continuous power with no EMI emissions or interference, making it perfect for battery-powered applications.
GIGAVAC HX22CAB DC Contactor - 300A 1500VDC
The GIGAVAC HX22CAB is a compact, ultra-high efficiency contactor engineered for high-voltage DC applications reaching up to 1500Vdc. Specifically designed for hazardous and demanding environments, it is UL1604 recognized for use in Class I & II, Div 2, and Class III locations. Featuring GIGAVAC's patented EPIC® Hermetic Seal, the HX22CAB exceeds IP67 and IP69K standards, ensuring zero arcing in open-air environments and total protection against contaminants. Its high-efficiency dual DC coils provide reliable performance with minimal power consumption and zero EMI emissions, making it an ideal choice for high-voltage battery packs, solar combiner boxes, and industrial inverter systems.
Product Highlights
- 1500Vdc Performance: UL508 recognized and load break rated
- EPIC® Hermetic Seal: Patented sealing for hazardous environments
- Hazardous Location Rated: Meets UL1604 (Class I, II, Div 2)
- Auxiliary Contact: Integrated SPST-NO for status feedback
- Zero EMI: Ideal for sensitive battery-powered control systems
- Extreme Resilience: MIL-STD-810 salt fog compliant
Primary Applications
- Utility-Scale Solar and Photovoltaic Inverters
- High-Voltage Battery Packs and Storage Systems
- Solar Combiner Boxes and DC Power Links
- DC Arc Fault Interrupter Systems
- Industrial High-Voltage Power Distribution
- Electric Vehicle (EV) Charging Infrastructure
Technical Specifications
| Contact Arrangement | SPST-NO (Main Contacts) |
|---|---|
| Max Operating Voltage | 1500 VDC |
| Rated Current | 300 Amps |
| Nominal Coil Voltage | 24 VDC |
| Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -55 to +85 °C |
| Auxiliary Contact | SPST-NO (Normally Open) |
| IP Rating | Exceeds IP67 & IP69K |
| Salt Fog Compliance | MIL-STD-810 |
| Weight | 0.58 kg |
Technical Datasheet
Download the official GIGAVAC HX22 Series datasheet for complete technical documentation, including terminal torque settings, mounting drawings, and efficiency curves.
