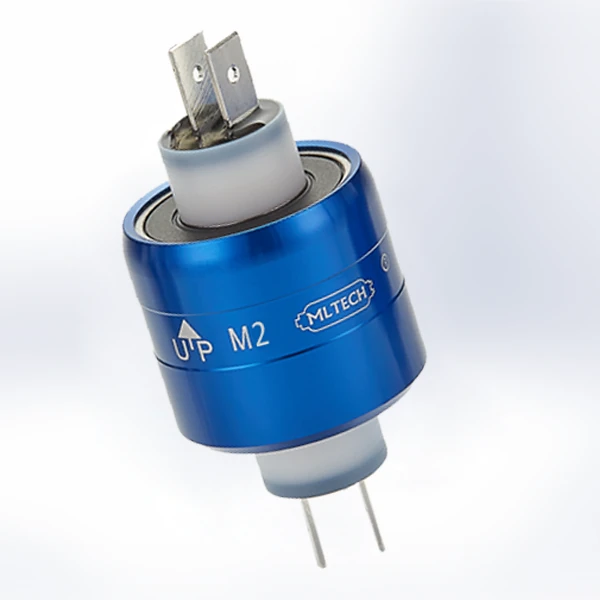

ML-TECH M2 Slip Ring - 2-Channel 30A 250V
The ML-TECH M2 is a robust rotary electrical connector specifically engineered for high-current and high-speed applications. Capable of transferring 30A per channel at voltages up to 250VAC, this 2-conductor slip ring provides a reliable bridge for power and signals between stationary and rotating platforms. With a maximum speed of 1800 rpm and the ability to handle frequencies up to 200 MHz, the M2 series is optimized for precision machinery, automated systems, and high-frequency data transmission. Its design ensures minimal rotational torque and superior insulation resistance, delivering maintenance-free performance in extreme environments.
Product Highlights
- High Current Density: Rated for robust 30A per conductor performance
- High-Speed Operation: Optimized for industrial speeds up to 1800 rpm
- Signal Versatility: Supports frequencies up to 200 MHz for data transfer
- Precision Engineering: Low rotational torque (200 gm-cm) for efficiency
- Thermal Durability: Stable operation in ranges from -30°C to +60°C
Primary Applications
- High-Speed Industrial Automation & Robotics
- Packaging and Bottling Rotating Equipment
- High-Frequency Communication & Radar Systems
- Power Transmission for Heavy-Duty Rotary Tables
- Surveillance Platforms and CCTV Systems
- Wind Energy and Renewable Power Components
Technical Specifications
| Number of Channels | 2 |
|---|---|
| Rated Current | 30A (per channel) |
| Rated Voltage | Up to 250 VAC |
| Maximum Speed | 1800 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | > 25 MΩ |
| Rotation Torque | 200 gm-cm |
| Operating Temperature | -30° to +60° C |
Visual Reference & Dimensional Diagram
Technical Datasheet
Download the official ML-TECH M2 datasheet for comprehensive technical documentation, including terminal configurations, mounting patterns, and performance curves.
