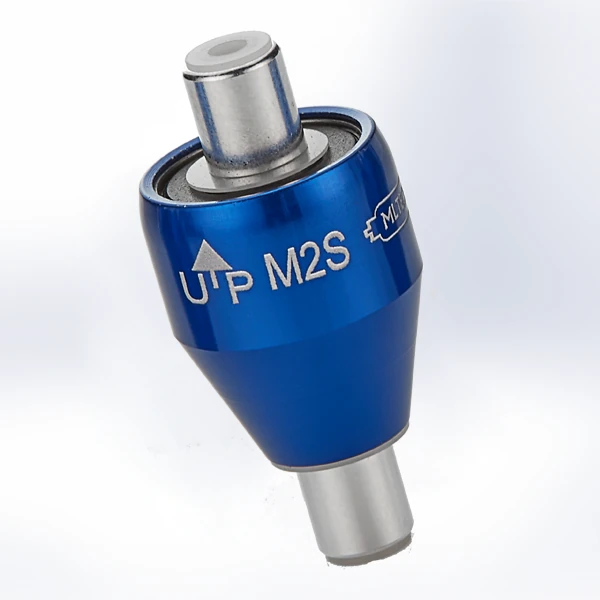

MLTECH M2S Slip Ring
ML-TECH M2S Slip Ring - 2-Channel 4A 250V
The **ML-TECH M2S** is a high-performance, 2-channel rotary electrical connector specifically engineered for precision signal and low-power transmission. Capable of carrying **4A per channel** at voltages up to **250V**, this compact slip ring provides a reliable bridge between stationary and rotating platforms. Designed for high-speed reliability, it supports operational speeds up to **2000 rpm** and handles frequencies up to **200 MHz**. The M2S series is optimized for sensitive automated systems, sensors, and high-frequency communication devices where minimal mechanical resistance and high signal integrity are paramount.
Product Highlights
- High-Speed Stability: Rated for exceptional operational speeds up to 2,000 rpm
- Signal Integrity: Broad frequency range up to 200 MHz for data transfer
- Ultra-Low Torque: Minimal rotational resistance at 75 gm-cm for sensitive systems
- Precision Contacts: High insulation resistance (>25 MΩ) ensuring safe power flow
- Wide Temperature Range: Reliable performance in environments from -30°C to +60°C
Primary Applications
- Precision Sensors and Measurement Instruments
- Robotics and Multi-Axis Manipulators
- High-Resolution Video and Signal Transmission
- Laboratory and Medical Rotary Equipment
- Communication and Radar Antenna Systems
- Testing and Calibration Turn-tables
Technical Specifications
| Number of Channels | 2 |
|---|---|
| Rated Current | 4A (per channel) |
| Rated Voltage | Up to 250 VAC |
| Maximum Speed | 2000 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | > 25 MΩ |
| Rotation Torque | 75 gm-cm |
| Operating Temperature | -30° to +60° C |
Visual Reference & Dimensional Drawing
Technical Datasheet
Download the official ML-TECH M2S datasheet for comprehensive technical documentation, including dimensional drawings, wiring diagrams, and performance curves.
