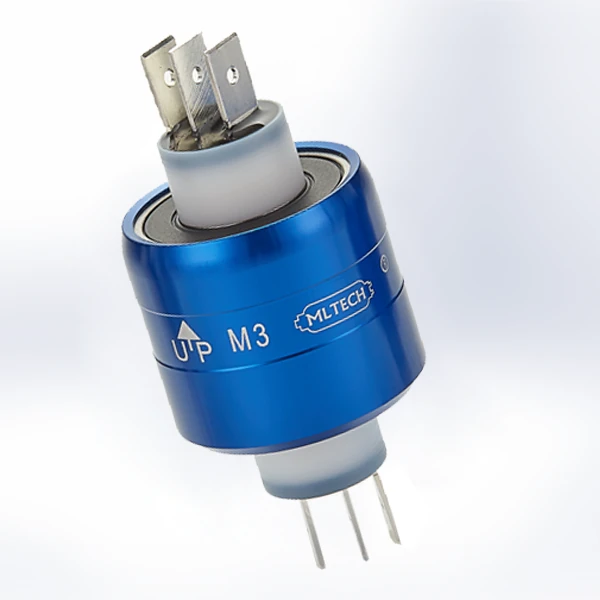

ML-TECH M3 Slip Ring - 3-Channel 30A High-Capacity
The ML-TECH M3 is a robust 3-conductor rotary electrical connector designed for industrial applications requiring higher power distribution. Capable of transferring 30A per channel at voltages up to 250VAC, this slip ring provides a stable and reliable bridge for power and complex signals. Optimized for high-performance machinery, it supports rotational speeds up to 1200 rpm and handles frequencies up to 200 MHz. The M3 series ensures exceptional signal integrity with superior insulation resistance and is built to deliver maintenance-free performance in demanding industrial environments ranging from -30° to 60° C.
Product Highlights
- Triple Channel Power: 3 independent conductors rated for 30A each
- High-Frequency Support: Handles signal transmission up to 200 MHz
- Industrial Speed: Stable performance at operational speeds up to 1200 rpm
- Robust Construction: Engineered for durability with 400 gm-cm torque
- Environmental Resilience: Operational in extreme ranges from -30°C to +60°C
Primary Applications
- Heavy-Duty Industrial Automation & Rotary Tables
- Packaging, Bottling, and Filling Machinery
- 3-Phase Power Transmission for Rotating Platforms
- High-Frequency Radar and Communication Hubs
- Renewable Energy Systems and Wind Turbines
- Material Handling and Robotic Gantry Systems
Technical Specifications
| Number of Channels | 3 |
|---|---|
| Rated Current | 30A (per channel) |
| Rated Voltage | Up to 250 VAC |
| Maximum Speed | 1200 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | > 25 MΩ |
| Rotation Torque | 400 gm-cm |
| Operating Temperature | -30° to +60° C |
Visual Reference & Dimensional Drawing
Technical drawing and mounting layout for the ML-TECH M3 series.
Technical Datasheet
Download the official ML-TECH M3 datasheet for comprehensive technical documentation, including terminal configurations and performance curves.
