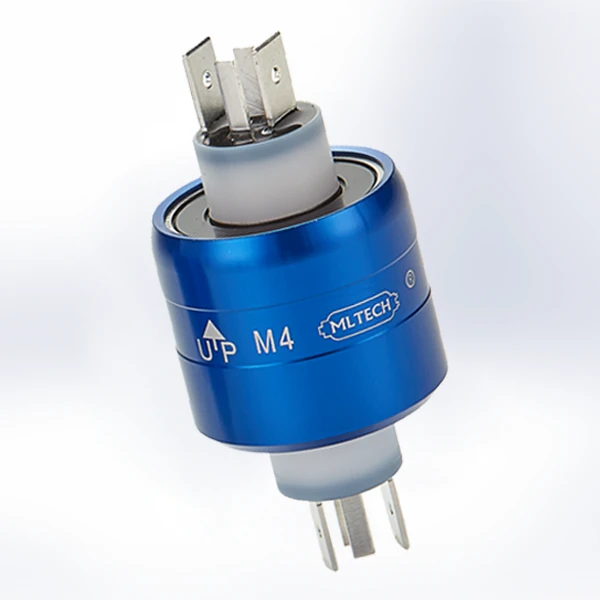

ML-TECH M4 Slip Ring - 4-Channel Hybrid 4A/30A
The ML-TECH M4 is a high-performance hybrid rotary electrical connector designed for complex industrial systems. Featuring a 4-conductor layout, it supports a dual-rated current configuration of 2x 4A and 2x 30A, allowing for the simultaneous transfer of heavy power and precision signals at voltages up to 250V. Engineered for durability and speed, it handles operational rotations up to 1200 rpm and maintains signal integrity for frequencies up to 200 MHz. With its robust construction and high insulation resistance, the M4 series provides a reliable, maintenance-free bridge for rotating machinery operating in temperatures from -30°C to +60°C.
Product Highlights
- Hybrid Configuration: Supports 2x 4A (Signal) and 2x 30A (Power) channels
- Simultaneous Transfer: Handles power and high-speed data in one unit
- High-Speed Stability: Rated for operational speeds up to 1200 rpm
- Signal Excellence: Frequency support up to 200 MHz for clean data
- Rugged Performance: 400 gm-cm rotation torque for heavy-duty use
Primary Applications
- Hybrid Power & Signal Transmission Systems
- Industrial Rotary Tables with Integrated Sensors
- Packaging Machinery with Servo Motor Control
- Automated Material Handling & Conveyor Systems
- High-Frequency Radar and Surveillance Pedestals
- Robotic Arms requiring simultaneous power and feedback
Technical Specifications
| Number of Channels | 4 |
|---|---|
| Rated Current | 2x 4A & 2x 30A |
| Rated Voltage | Up to 250 VAC |
| Maximum Speed | 1200 rpm |
| Maximum Frequency | 200 MHz |
| Insulation Resistance | > 25 MΩ |
| Rotation Torque | 400 gm-cm |
| Operating Temperature | -30° to +60° C |
Visual Reference & Dimensional Diagram
Technical drawing and mounting layout for the ML-TECH M4 hybrid series.
Technical Datasheet
Download the official ML-TECH M4 datasheet for comprehensive technical documentation, including terminal configurations and wiring guidance.
