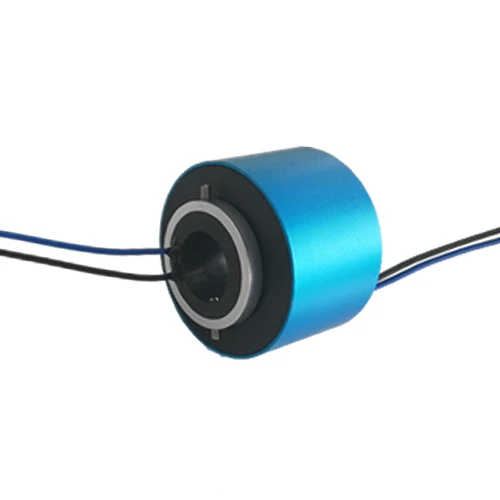

H2056-0210 Senring 2-Channel 10A Through-bore Slip Ring
Product Code:H2056-0210
Stock:0
Free shipping over $500
Fast & reliable service
Product Description
H2056-0210 Senring 2-Channel 10A Through-bore Slip Ring
Senring H2056-0210 Through-Bore Slip Ring - 2CH / 10A
The **Senring H2056-0210** is a high-performance through-bore slip ring featuring a **20mm hole** designed to accommodate shafts, hydraulics, or pneumatic lines in rotating systems. With **2 channels** rated at **10A** each, it provides stable power and signal transmission up to **600VAC**. Engineered with **Gold Alloy** contacts, it ensures exceptionally low electrical noise (≤ 0.01 Ω) and a long operational life. Capable of speeds up to **600 rpm**, this slip ring is the ideal solution for industrial automation, rotary tables, and robotics where compact integration and reliable conductivity are paramount.
Product Highlights
- Through-Bore Design: 20mm inside diameter for shaft mounting
- Gold Alloy Contacts: Superior conductivity and minimal wear
- High Speed: Reliable operation up to 600 rotations per minute
- Low Electrical Noise: Stable signal integrity (≤ 0.01 Ω interference)
- Robust Insulation: Rated for high-voltage systems up to 600VAC
- Long Reach: Standard 1000mm stator and rotor connection cables
Primary Applications
- Industrial Rotary Indexing Tables
- Robotic Arms and End-of-Arm Tooling
- Packaging and Labelling Machinery
- Wind Turbine Pitch Control Systems
- Medical Imaging and Rotating Equipment
- CCTV Pan-Tilt Camera Assemblies
Technical Specifications
| Number of Channels | 2 Channels |
|---|---|
| Rated Current | ≤ 10A per ring |
| Inside / Outside Diameter | 20 mm / 56 mm |
| Max Operating Voltage | 600 VAC |
| Operating Speed | 0 - 600 rpm |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -40°C to +80°C |
