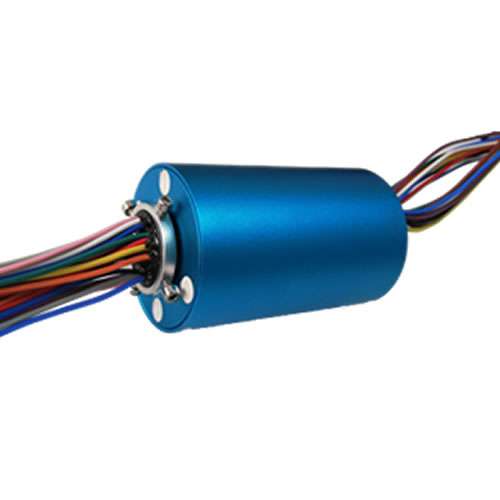

Senring SNM012-24P 24-Channel 10A Through-bore Slip Ring
Senring SNM012 24-Channel Through-bore Slip Ring
The **Senring SNM012 Series** is a high-density 24-channel through-bore slip ring engineered for complex industrial systems requiring the simultaneous transmission of multiple power and signal lines. Its specialized central aperture allows for easy shaft mounting or the integration of pneumatic and hydraulic lines. Encased in a rugged **aluminum housing**, this slip ring utilizes advanced **Gold-on-Gold contact technology** to ensure ultra-low electrical noise and stable connectivity at high rotation speeds up to **600 rpm**. With a rated capacity of 10A per ring and extended **1000mm cable leads**, it is the definitive solution for multi-axis machinery and high-precision automation.
Product Highlights
- High-Density Channels: 24 independent rings for complex signal and power routing
- High-Speed Stability: Precision-balanced for smooth operation up to 600 rpm
- Gold Alloy Contacts: Advanced material composition for minimal signal interference
- Robust Construction: Industrial aluminum body for superior durability and heat dissipation
- Through-bore Design: Hollow center supports easy shaft mounting and cable passage
- Extended Lead Cables: 1000mm stator and rotor cables for maximum installation flexibility
Primary Applications
- Multi-Axis Robotics: High-channel feedback for complex robotic joints and arms
- CNC Machining Centers: Integrated signal feed for advanced rotary indexing tables
- Automation Systems: Powering multiple motors and sensors on rotating platforms
- Medical Diagnostic: Reliable data and power interface for CT and scanning equipment
- Surveillance Hubs: High-capacity signal transmission for heavy-duty radar and PTZ systems
- Wind Turbines: Pitch control and sensor data transmission for industrial turbines
Technical Specifications
| Manufacturer | Senring |
|---|---|
| Model / Series | SNM012 (24-Channel Variant) |
| Number of Channels | 24 Channels |
| Rated Current | ≤ 10A per ring |
| Rated Voltage | 600 VAC (Maximum) |
| Maximum Rotation Speed | 0 - 600 rpm |
| Housing Material | Industrial-Grade Aluminum |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm, 6 VDC, 0.2 A) |
| Operating Temperature | -40°C to +80°C |
