Senring SNM012B-18 Precision Capsule Slip Ring
The Senring SNM012B-18 is a high-density capsule slip ring designed for applications requiring the simultaneous transmission of multiple signal and low-power lines in a compact footprint. With 18 independent channels, this unit is optimized for systems where space is at a premium but high-fidelity connectivity is essential. Utilizing advanced Gold-on-Gold contact technology (Copper-Zinc-Gold alloy), it ensures ultra-low electrical noise and stable transmission at rotation speeds up to 300 rpm. Its rugged capsule design and extended 600mm lead cables make it a versatile solution for precision robotics, medical devices, and automated monitoring systems.
Product Highlights
- High Channel Density: 18 independent rings for complex signal and power routing
- Gold Alloy Contacts: Advanced material composition for minimal contact resistance
- Ultra-Low Noise: Electrical interference ≤ 0.01 Ω for sensitive data integrity
- Compact Form Factor: Capsule design ideal for space-constrained installations
- Extended Connectivity: Pre-wired with 600mm stator and rotor cables
- Thermal Resilience: Reliable operation in extreme temperatures (-40°C to +80°C)
Primary Applications
- Precision Robotics: Feedback and control for multi-axis robotic joints
- Advanced Surveillance: High-definition signal transmission for PTZ cameras
- Medical Instrumentation: Rotary interfaces for diagnostic and scanning equipment
- Automated Testing: Data acquisition for rotating sensor platforms
- Display Technology: Power and signal for complex rotating exhibits
- Packaging Systems: Multi-sensor coordination on high-speed rotating lines
Technical Specifications
| Number of Channel | 18 |
|---|---|
| Rated Current | ≤ 2A / Per ring |
| Rated Voltage, max 250Vac | 250VAC |
| Operating Temperature Range | -40°C to +80°C |
| Number of revolutions | 0-300 rpm |
| Connection Cable Length | 600 mm cable (Stator / Rotor) |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0,01 Ω (5 rpm, 6 VDC, 0,2 A) |
| Housing Material | High-Grade Engineering Plastic |
Related Products
%25
Senring
Senring SNM022A-06 6-Channel 2A Capsule Slip Ring
%13
Senring
Senring SNM012B-06 6-Channel 2A Capsule Slip Ring
%28
Moflon
Moflon MW1330 3-Channel 30A Capsule Slip Ring
%7
Senring
Capsule Slip Ring Senring SNM022A-12-AL
%28
Senring
Senring SNM022A-6-al-Channel 2A Aluminum Capsule Slip Ring
%21
Senring
Senring SNM022A-12 12-Channel 2A Capsule Slip Ring
%25
Moflon
Moflon MW1430 4-Channel 30A Capsule Slip Ring
%23
Senring

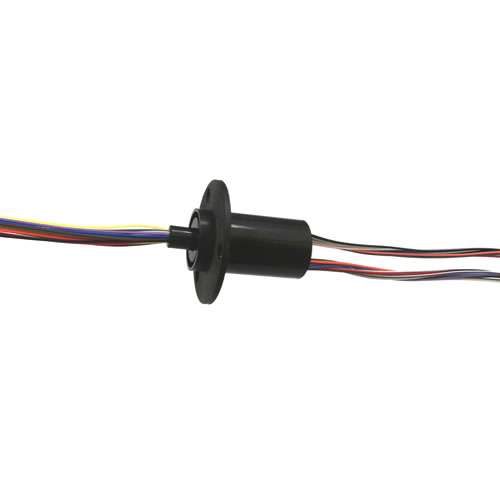

Senring SNM022A-24-Channel 2A Capsule Slip Ring
