Capsule Slip Ring Senring SNM022A-12-AL
Senring SNM022A-18-AL 18-Channel Miniature Capsule Slip Ring
The Senring SNM022A-18-AL is a high-precision 18-channel miniature capsule slip ring, specifically engineered for applications requiring a high density of signal and power lines in extremely compact rotating systems. Featuring advanced Gold-on-Gold contact technology, it ensures ultra-low electrical noise and reliable transmission for up to 18 independent circuits. Its robust aluminum housing and 22mm diameter make it the professional choice for high-speed dome cameras, robotics, and UAV gimbals, providing smooth 360-degree continuous rotation while completely eliminating the risk of wiring damage.
Technical Specifications
- Channel Configuration: 18 Independent Channels
- Current Capacity: 2A Per Channel
- Voltage Rating: 250 VAC/VDC
- Contact Material: Gold Alloy (Gold-on-Gold)
- Operating Speed: 0 - 300 RPM
- Electrical Interference: ≤ 0.01 Ω noise floor
Design & Quality Features
- Miniature Capsule Design: 22mm diameter housing
- AWG28 Lead Wires: Color-coded for easy identification
- 360° Continuous Rotation: Smooth mechanical payout
- Durable Aluminum Shell: Resistant to dust and moisture
- Maintenance-free operation with high-life brushes
- Optimized for low-torque rotational systems

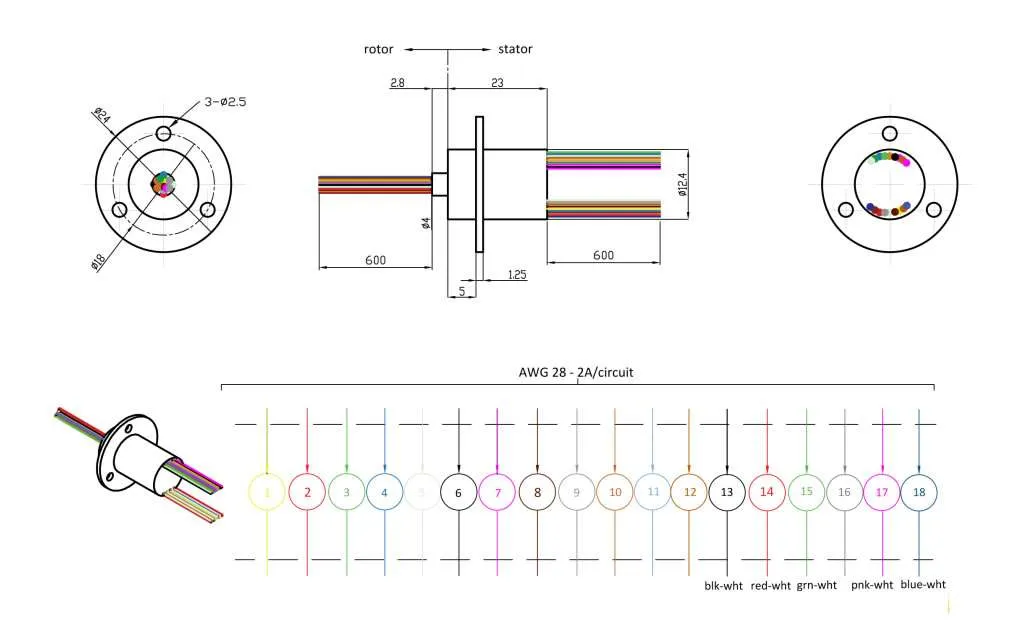

Technical Drawing & Dimensions
| Manufacturer / Series | Senring / SNM022A Series |
|---|---|
| Circuit / Channel Number | 18 Channels |
| Rated Current | 2A per circuit |
| Max Operating Voltage | 250 VAC/VDC |
| Wire Gauge / Length | AWG 28 / 250-300 mm |
| Contact Material | Gold Alloy (Au-Au) |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Dielectric Strength | 500 VAC @ 50Hz, 60s |
| Operating Temperature | -40 °C to +80 °C |
