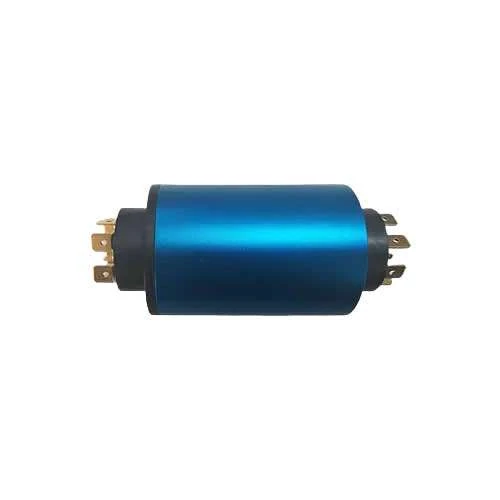

SRC045-6AL 6-Channel (6x 20A) Pin Type Slip Ring
Prosper SRC045-6AL 6-Channel Pin Type Slip Ring
The **Prosper SRC045-6AL Series** is a high-performance electrical rotary joint specifically designed for seamless power and signal transmission in demanding industrial environments. Unlike standard wire-lead models, the **Pin Type** connection offers a more compact and vibration-resistant interface. This specific model features a premium **aluminum body structure**, significantly increasing its mechanical robustness and service life compared to plastic alternatives. Utilizing a sophisticated **Gold Alloy (Copper-Zinc-Gold)** contact system, it ensures ultra-low electrical noise and stable connectivity for high-speed automated systems.
Product Highlights
- Pin Connection: Integrated pin terminals for secure and simplified electrical integration
- Aluminum Housing: Lightweight yet high-strength body for superior protection
- Gold Alloy Contacts: Advanced material composition for minimal signal interference
- High Current Density: 6 independent channels each capable of handling 20A
- Low Electrical Noise: Resistance variation ≤ 0.01 Ω for sensitive signal integrity
- Broad Thermal Range: Reliable operation from arctic -40°C to industrial +80°C
Primary Applications
- Packaging Machinery: Rotary heating elements and sensor feedback lines
- Medical Devices: Precision signal transmission in diagnostic imaging equipment
- Pharmaceutical Systems: High-purity processing and bottling rotary stations
- Plastic Molding: Power supply for rotating molds and temperature controllers
- Conveyor Systems: Powering auxiliary motors on rotating sorting platforms
- Robotics & HMI: Integrated power for 360-degree rotating control interfaces
Technical Specifications
| Manufacturer / Series | Prosper / SRC045-6AL |
|---|---|
| Number of Channels | 6 Channels |
| Rated Current | 6 x 20A |
| Outside Diameter | 45 mm |
| Rated Voltage | ≤ 400V AC/DC |
| Maximum Rotation Speed | ≤ 300 rpm |
| Connection Type | Pin Terminal |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm, 6 VDC, 0.2 A) |
| Housing Material | High-Grade Aluminum |
| Operating Temperature | -40°C to +80°C |
