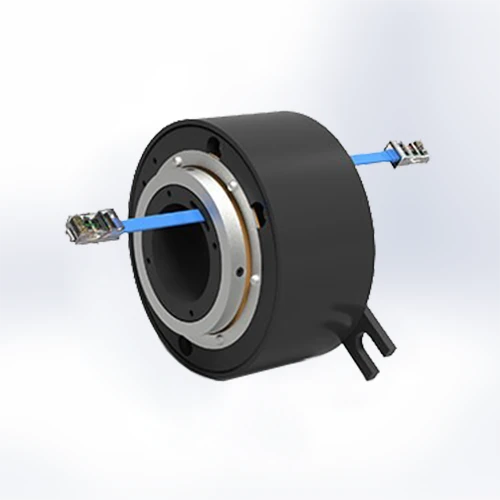

DSTI ESET4 4-Channel Through-Bore Ethernet Slip Ring (100 Mbps)
The DSTI ESET4 is a specialized through-bore slip ring engineered primarily for reliable high-speed Ethernet data transmission in industrial rotating assemblies. Featuring a 4-channel configuration optimized for 100 Mbps (100Base-T) connectivity, this model is built for high-voltage environments with a 600V rating. The through-bore architecture allows the unit to be mounted directly over a central rotating shaft or integrated with pneumatic/hydraulic lines. Utilizing premium silver contact technology, the ESET4 ensures stable conductivity and signal integrity at speeds up to 250 RPM. Its compact 54 mm [2.130"] housing and maintenance-free design make it an essential component for network-based industrial automation, surveillance systems, and robotic platforms.
Technical Excellence
- 100Base-T Ethernet: Dedicated 4-channel support for stable 100 Mbps data
- High Voltage Capacity: Rated for 600V professional-grade industrial power
- Silver Contact Technology: Premium silver contacts for high-reliability data paths
- Through-Bore Design: Hollow center for shaft or multi-media integration
- Copper Lead Wiring: High-quality 24 AWG wiring for maximum signal purity
- Precision Signal Integrity: Designed to minimize crosstalk in network protocols
Operational Advantages
- Rotational Efficiency: Continuous 360° operation at speeds up to 250 RPM
- Compact Housing: Efficient 54 mm length for simplified machine integration
- Extreme Temp Resilience: Performs reliably from -40°C up to +80°C
- Low Noise Design: Maximum 100 Milliohms ensures stable Ethernet connectivity
- Long Reach Leads: 914 mm (36") wires for flexible remote installation
- Sealed Construction: Maintenance-free assembly built for industrial longevity
Technical Specifications
| Model Number | DSTI ESET4 |
|---|---|
| Total Channels | 4 Circuits |
| Rated Current | (1x) 100 Mbps Ethernet Channel |
| Max. Data Speed | 100 Mbps [100Base-T] |
| Voltage Rating | 600 V |
| Max. Rotation Speed | 250 RPM |
| Contact Material | Silver |
| Housing Length | 54 mm [2.130 in.] |
| Lead Wire Length | 914 mm [36 in.] |
| Wire Gauge / Material | 24 AWG / Pure Copper |
| Electrical Noise | 100 Milliohms (max.) |
| Operating Temperature | -40°C to +80°C |
