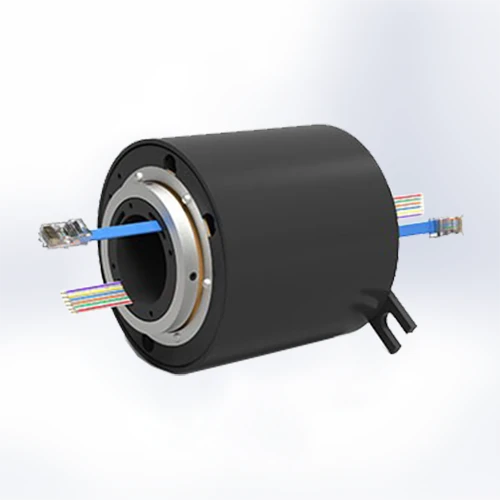

DSTI ESET68 14-Channel Hybrid Through-Bore Slip Ring (1 Gbps + 10A Power)
The DSTI ESET68 is a versatile hybrid through-bore slip ring engineered for industrial applications that require a robust combination of high-power delivery and ultra-high-speed data transmission. This 14-channel model integrates six 10A power circuits alongside a dedicated 1 Gbps Gigabit Ethernet port (1000Base-T). Featuring a 600V high-voltage rating and premium silver contact technology, the ESET68 ensures stable conductivity and exceptional signal integrity during continuous 360° rotation. Its 102 mm [4.010"] housing with a central through-bore allows for easy mounting over existing shafts or the passage of pneumatic lines, making it a premier choice for rotary tables, automated packaging machinery, and medium-duty robotic systems.
Technical Excellence
- Gigabit Ethernet Support: Optimized for stable 1 Gbps (1000Base-T) data
- 6x 10A Power Circuits: High-current capacity for industrial motors and heaters
- Silver Contact Technology: Premium silver contacts for long-term electrical reliability
- 600V Rated Voltage: Engineered for high-voltage industrial signal and power levels
- Through-Bore Design: Hollow center for shaft, cable, or fluid line integration
- Hybrid Integration: Simultaneously handles heavy power and high-speed data
Operational Advantages
- High-Speed Support: Smooth 360° rotation at speeds up to 250 RPM
- Industrial Grade Build: Durable 102 mm housing built for professional life
- Extreme Temp Resilience: Performs reliably from -40°C up to +80°C
- Low Electrical Noise: Maximum 100 Milliohms ensures stable data clarity
- Long Reach Leads: 914 mm (36") wiring simplifies remote cabinet connectivity
- Maintenance-Free: Sealed assembly engineered for continuous industrial use
Technical Specifications
| Model Number | DSTI ESET68 |
|---|---|
| Total Channels | 14 Circuits |
| Rated Current | (6x) 10A, (1x) Gigabit Ethernet |
| Max. Data Speed | 1 Gbps [1000Base-T] |
| Voltage Rating | 600 V |
| Max. Rotation Speed | 250 RPM |
| Contact Material | Silver |
| Housing Length | 102 mm [4.010 in.] |
| Lead Wire Length | 914 mm [36 in.] |
| Wire Gauge / Material | 16 & 24 AWG / Tin-Plated & Pure Copper |
| Electrical Noise | 100 Milliohms (max.) |
| Operating Temperature | -40°C to +80°C |
