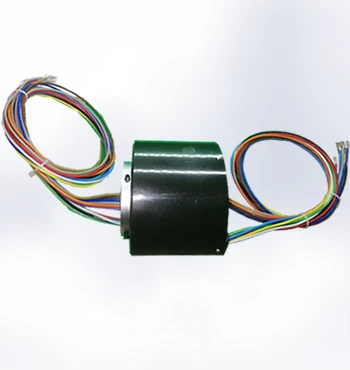

ID25mm 12-Channel, 20A, Through-bore Slip Ring
Product Code: ID25mm-12x15A
In stock — 27 available
Product Description
ID25mm 12-Channel, 20A, Through-bore Slip Ring
The one of our through-bore slip ring models, ID25mm has 12 channels which each have 20A operating current.
ID25mm Through-Bore Slip Ring - 12 Channels / 20A
The ID25mm through-bore slip ring is a high-performance rotary solution engineered for demanding industrial systems requiring high-current power transmission. Featuring a wide 25mm (1 inch) hollow center, it allows for the seamless integration of mechanical shafts, hydraulic lines, or pneumatic tubing. This model is equipped with 12 heavy-duty channels, each rated for a continuous 20A at voltages up to 380VAC/DC. Utilizing premium Gold Alloy (Copper-Zinc-Gold) contacts, it ensures exceptionally low electrical noise (≤ 0.01 Ω) and superior connectivity at speeds up to 500 rpm. Its robust construction and 1000mm long connection cables make it a reliable choice for high-power robotics, rotary indexing tables, and heavy-duty automation.
Product Highlights
- Large Through-Bore: 25mm ID for versatile hollow-shaft mounting
- High Current Capacity: 12 independent channels rated for 20A each
- Gold Alloy Contacts: Reliable Gold-on-Gold contact technology
- Minimal Interference: Ultra-low electrical noise for stable operation
- Extended Reach: 1000mm pre-installed stator and rotor cables
- Universal Positioning: Supports both vertical and horizontal mounting
Primary Applications
- High-Power Rotary Indexing and Assembly Tables
- Heavy-Duty Packaging, Filling, and Labelling Machinery
- Industrial Robotic Manipulators and Large-Scale Arms
- Medical Equipment and Rotating Diagnostic Platforms
- Wind Turbine Power and Pitch Control Systems
- Commercial Rotating Signage and Display Turrets
Technical Specifications
| Number of Channels | 12 Channels |
|---|---|
| Inner Diameter (ID) | 25 mm |
| Rated Current | ≤ 20A per ring |
| Operating Voltage | ≤ 380 VAC/DC |
| Operating Speed | 0 - 500 rpm |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -30°C to +80°C |
| Working Position | Vertical and Horizontal |
