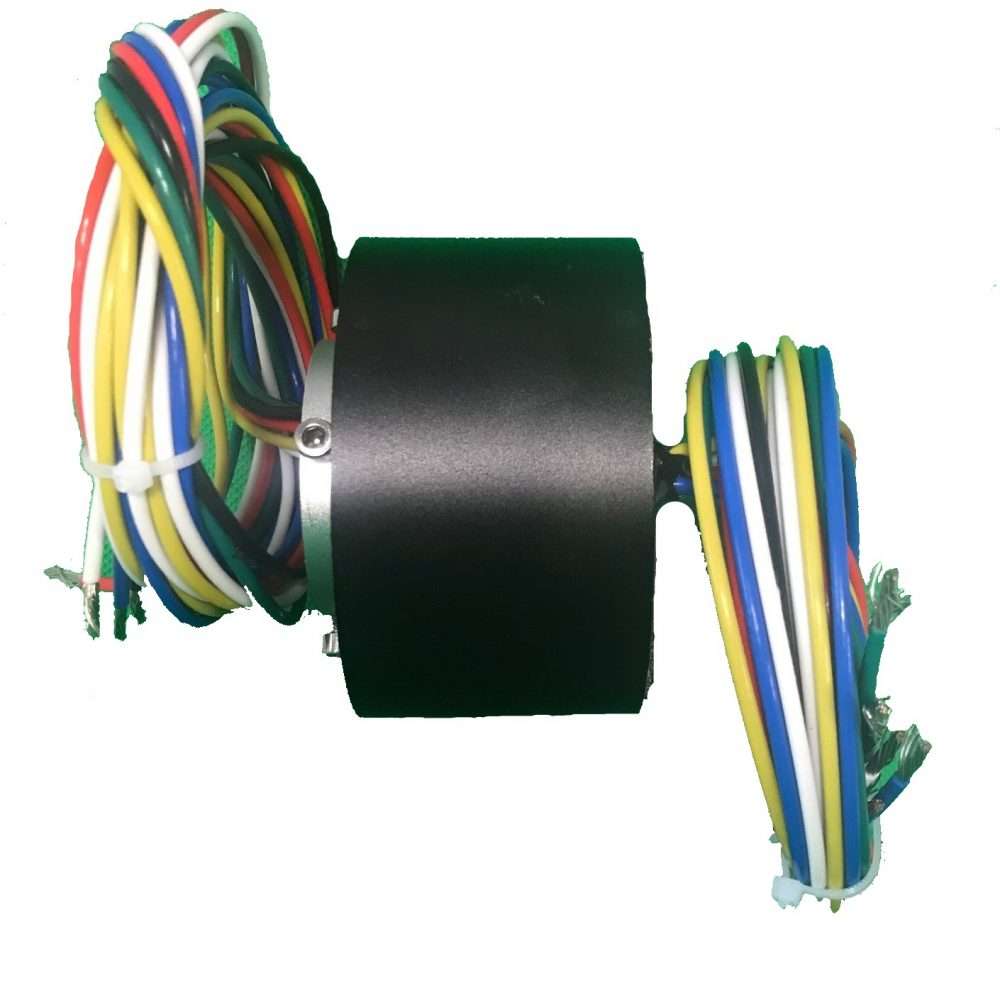

ID25mm 24-Channel, 18x30A+6S, Through-bore Slip Ring
Product Code: ID25mm-18x30A+6S
In stock — 3 available
Product Description
ID25mm 24-Channel, 18x30A+6S, Through-bore Slip Ring
The one of our through-bore slip ring models, 24-Channel, 18x30A+6S which each have 20A operating current.
ID25mm Hybrid Through-Bore Slip Ring - 24 Channels (18x30A + 6x5A)
The ID25mm Hybrid through-bore slip ring is a high-performance rotary joint engineered for complex industrial architectures that require both substantial power and sensitive signal transmission. Featuring a 25mm (1 inch) hollow center, it integrates 18 heavy-duty 30A power channels alongside 6 dedicated 5A signal rings, allowing for the simultaneous operation of motors and sensors. Built with premium Gold Alloy contacts, it maintains exceptionally low electrical interference (≤ 0.01 Ω) even in demanding environments. With 1000mm long connection cables and a robust mechanical design rated for 500 rpm, this slip ring is the ultimate solution for large-scale robotics, rotary indexing tables, and automated processing lines.
Product Highlights
- Hybrid Configuration: Combined 18x30A power and 6x5A signal channels
- Large Through-Bore: 25mm ID for shaft or pneumatic line passage
- Gold Alloy Tech: Reliable Gold-on-Gold contacts for minimal friction
- High Voltage Rating: Supports up to 600VAC/DC operation
- Stable Performance: Low electrical noise for precision signal integrity
- Industrial Reach: Pre-wired with 1000mm stator and rotor cables
Primary Applications
- Heavy-Duty Industrial Robots and Multi-Axis Manipulators
- Automated Rotary Indexing Tables and Filling Turrets
- High-Power Packaging, Labelling, and Wrapping Machinery
- Wind Turbine Power Distribution and Pitch Control Systems
- Rotating Medical Diagnostic Equipment and Imaging Beds
- CCTV Surveillance Pedestals and Large-Scale Moving Displays
Technical Specifications
| Channel Configuration | 24 Channels Total (18 x 30A + 6 x 5A) |
|---|---|
| Inner Diameter (ID) | 25 mm |
| Max Operating Voltage | ≤ 600 VAC/DC |
| Operating Speed | 0 - 500 rpm |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm, 6 VDC, 0.2 A) |
| Connection Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -30°C to +80°C |
| Working Position | Vertical and Horizontal |
| Durability | Designed for long-life industrial cycles |
