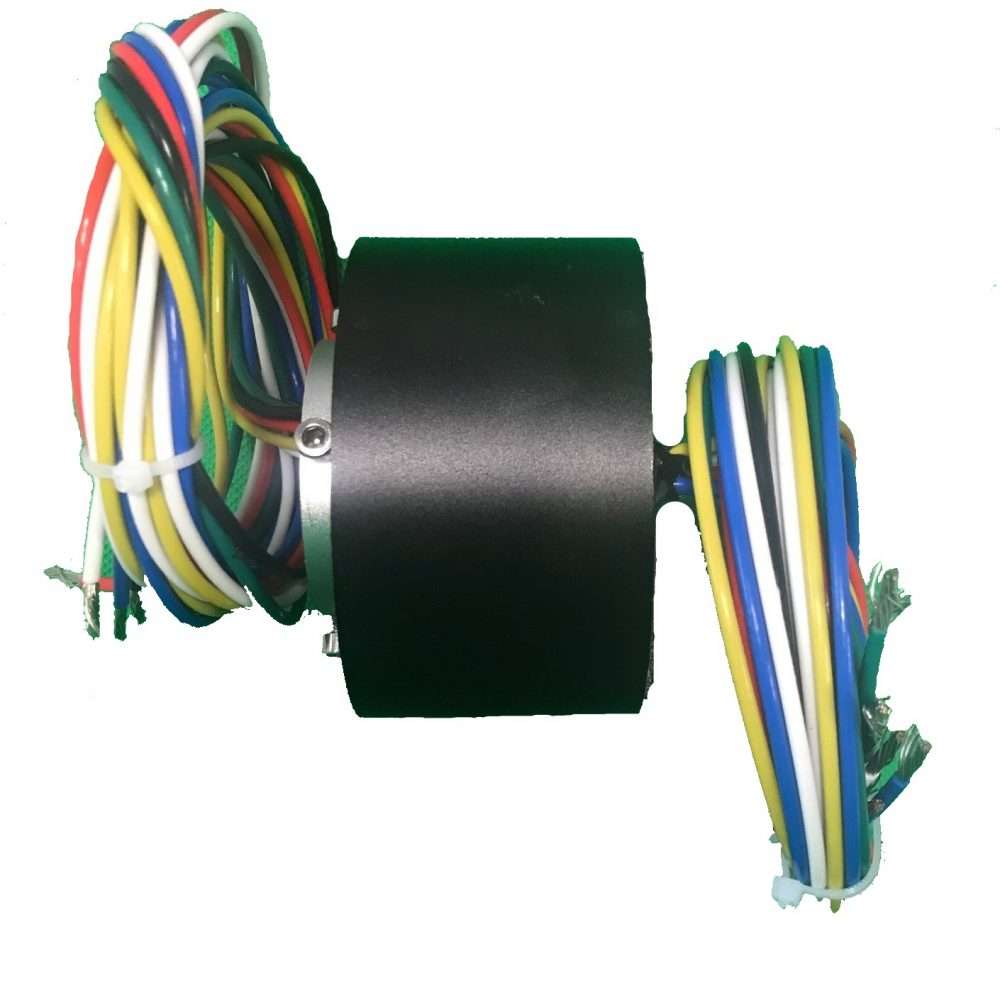

ID25mm 24-Channel, 20A, Through-bore Slip Ring
Product Code: ID25mm-24x20A
In stock — 12 available
Product Description
ID25mm 24-Channel, 20A, Through-bore Slip Ring
The one of our through-bore slip ring models, ID25mm has 24 channels which each have 20A operating current.
ID25mm Through-Bore Slip Ring - 24 Channels / 20A
The ID25mm series through-bore slip ring is a high-density rotary solution engineered for demanding industrial systems requiring the simultaneous transmission of multiple high-power lines. Featuring a wide 25mm (1 inch) hollow center, it allows for the seamless integration of mechanical shafts, hydraulic lines, or pneumatic tubing. This model is equipped with 24 independent channels, each rated for a continuous 20A at voltages up to 600VAC/DC. Utilizing premium Gold Alloy (Copper-Zinc-Gold) contacts, it ensures exceptionally low electrical noise (≤ 0.01 Ω) and superior connectivity at speeds up to 500 rpm. Its robust construction and 1000mm long connection cables make it the ultimate choice for high-power robotics, rotary indexing tables, and heavy-duty automation architectures.
Product Highlights
- High Channel Density: 24 independent circuits for complex routing
- Large Through-Bore: 25mm ID for versatile hollow-shaft mounting
- High Current Capacity: Rated for a continuous 20A per ring
- Gold Alloy Contacts: Reliable Gold-on-Gold contact technology
- Low Electrical Noise: Stable integrity (≤ 0.01 Ω) for sensitive data
- Extended Reach: 1000mm pre-installed stator and rotor cables
Primary Applications
- Advanced Industrial Robotics and Multi-Axis Manipulators
- Heavy-Duty Rotary Indexing and Assembly Automation
- High-Power Packaging, Filling, and Labelling Machinery
- Medical Imaging and Rotating Diagnostic Platforms
- Wind Turbine Power Management and Pitch Control
- Large-Scale Rotating Displays and Surveillance Systems
Technical Specifications
| Number of Channels | 24 Channels |
|---|---|
| Inner Diameter (ID) | 25 mm |
| Rated Current | ≤ 20A per ring |
| Operating Voltage | ≤ 600 VAC/DC |
| Operating Speed | 0 - 500 rpm |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -30°C to +80°C |
| Working Position | Vertical and Horizontal |
