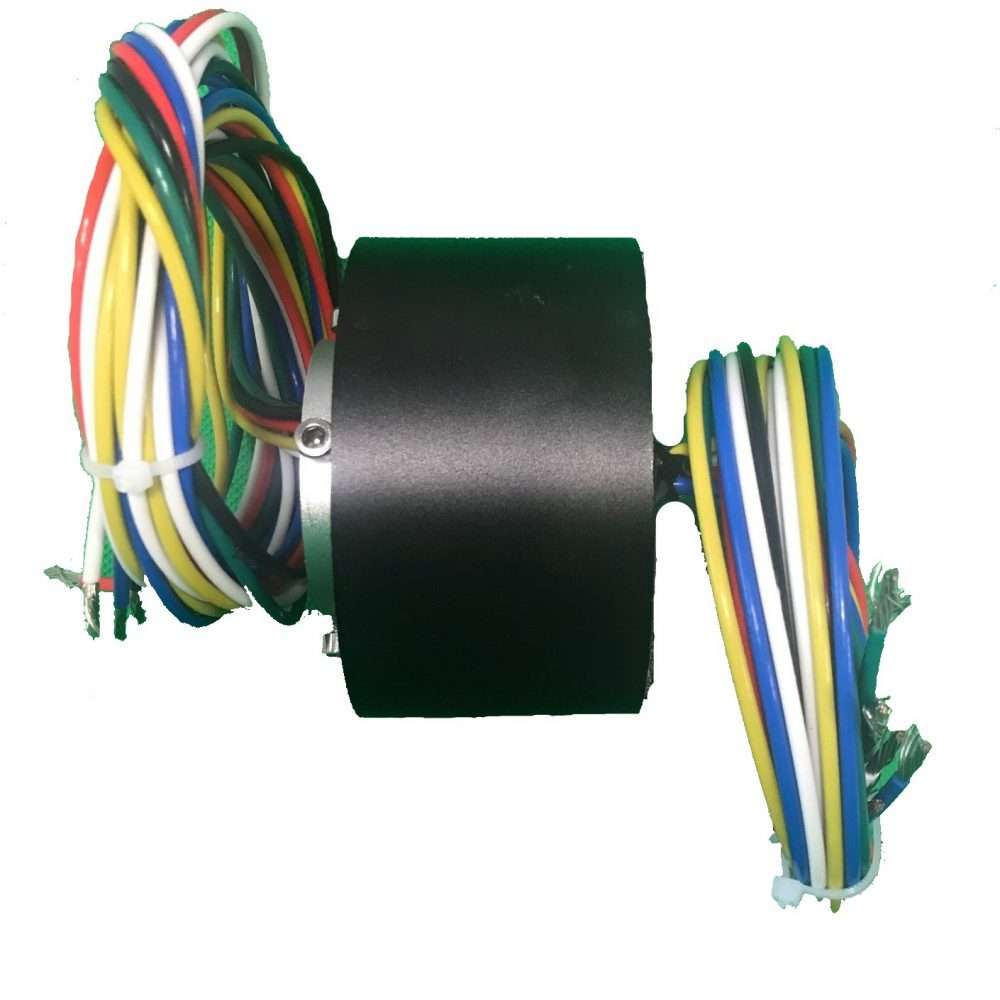

ID25mm 6-Channel, 15A, Through-bore Slip Ring
Product Code: ID25mm-6x15A-1
In stock — 12 available
Product Description
ID25mm 6-Channel, 15A, Through-bore Slip Ring
The one of our through-bore slip ring models, ID25mm has 6 channels which each have 15A operating current.
ID25mm Through-Bore Slip Ring - 6 Channels / 15A
The ID25mm series through-bore slip ring is a professional rotary solution designed for industrial applications that require reliable power transmission through a rotating shaft. Featuring a 25mm (1 inch) hollow center, it seamlessly integrates with mechanical shafts or allows for the passage of pneumatic and hydraulic lines. This model features 6 independent channels, each rated for a continuous 15A current at voltages up to 600VAC/DC. Engineered with premium Precious Metal contacts, it ensures exceptionally low electrical noise (≤ 0.01 Ω) and superior signal integrity at speeds up to 500 rpm. Supplied with 1000mm long connection cables, it is an ideal choice for rotary indexing tables, packaging machinery, and industrial automation.
Product Highlights
- Versatile Through-Bore: 25mm ID for easy hollow-shaft integration
- High Current Capacity: 6 channels rated for a continuous 15A each
- Precious Metal Contacts: Ensures minimal wear and stable connectivity
- High Speed Stability: Reliable performance up to 500 rotations per minute
- Low Electrical Noise: Stable integrity (≤ 0.01 Ω) for sensitive equipment
- Extended Reach: Pre-installed 1000mm stator and rotor cables
Primary Applications
- Rotary Indexing Tables and Automated Turrets
- Packaging, Labelling, and Industrial Filling Machinery
- Industrial Robotic Joints and Multi-Axis Manipulators
- Medical Equipment and Rotating Diagnostic Displays
- Wind Turbine Power and Pitch Control Systems
- Rotating Signage and Commercial Display Turrets
Technical Specifications
| Number of Channels | 6 Channels |
|---|---|
| Inner Diameter (ID) | 25 mm |
| Rated Current | ≤ 15A per ring |
| Operating Voltage | ≤ 600 VAC/DC |
| Operating Speed | 0 - 500 rpm |
| Contact Material | Precious Metals |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -30°C to +80°C |
| Working Position | Vertical and Horizontal |
