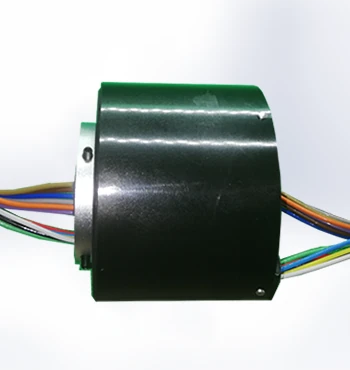

ID38mm 12-Channel, 10A, Through-bore Slip Ring
ID38mm Through-Bore Slip Ring - 12 Channels / 10A
The **ID38mm** through-bore slip ring is a professional-grade rotary solution designed for heavy industrial applications requiring stable power and signal transmission across rotating interfaces. Featuring a **38mm (1.5 inch) hollow center**, it allows for the passage of mechanical shafts, hydraulic lines, or pneumatic tubing. This model is equipped with **12 independent channels**, each rated for a continuous **10A** current at voltages up to **600VAC/DC**. Utilizing premium **Gold Alloy (Copper-Zinc-Gold)** contacts, it ensures exceptionally low electrical noise (≤ 0.01 Ω) and superior signal integrity at speeds up to **600 rpm**. Its robust construction and **1000mm long connection cables** make it a preferred choice for heavy-duty robotics, gantry cranes, and large-scale textile machinery.
Product Highlights
- Large Through-Bore: 38mm ID for versatile hollow-shaft integration
- Efficient Power Delivery: 12 independent channels rated for 10A each
- Gold Alloy Contacts: Reliable Gold-on-Gold contact for long life
- Low Interference: Ultra-low electrical noise for stable data transmission
- High Speed Stability: Reliable performance up to 600 rotations per minute
- Extended Reach: Includes 1000mm pre-installed stator and rotor cables
Primary Applications
- Multi-Axis Industrial Robots and Automated Arms
- Heavy-Duty Cranes and Gantry Crane Control Systems
- Large-Scale Textile and Fabric Processing Machines
- Heavy Industrial Machinery and Rotary Turrets
- Rotary Indexing Tables and Assembly Automation
- Surveillance Systems and Rotating Radar Pedestals
Technical Specifications
| Number of Channels | 12 Channels |
|---|---|
| Inner Diameter (ID) | 38 mm |
| Rated Current | ≤ 10A per ring |
| Operating Voltage | ≤ 600 VAC/DC |
| Operating Speed | 0 - 600 rpm |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ≤ 0.01 Ω (at 5 rpm) |
| Cable Length | 1000 mm (Stator & Rotor) |
| Operating Temperature | -30°C to +80°C |
| Working Position | Vertical and Horizontal |
Technical Datasheet
Download the official ID38mm Series datasheet for complete technical drawings, wiring diagrams, and installation blueprints.
